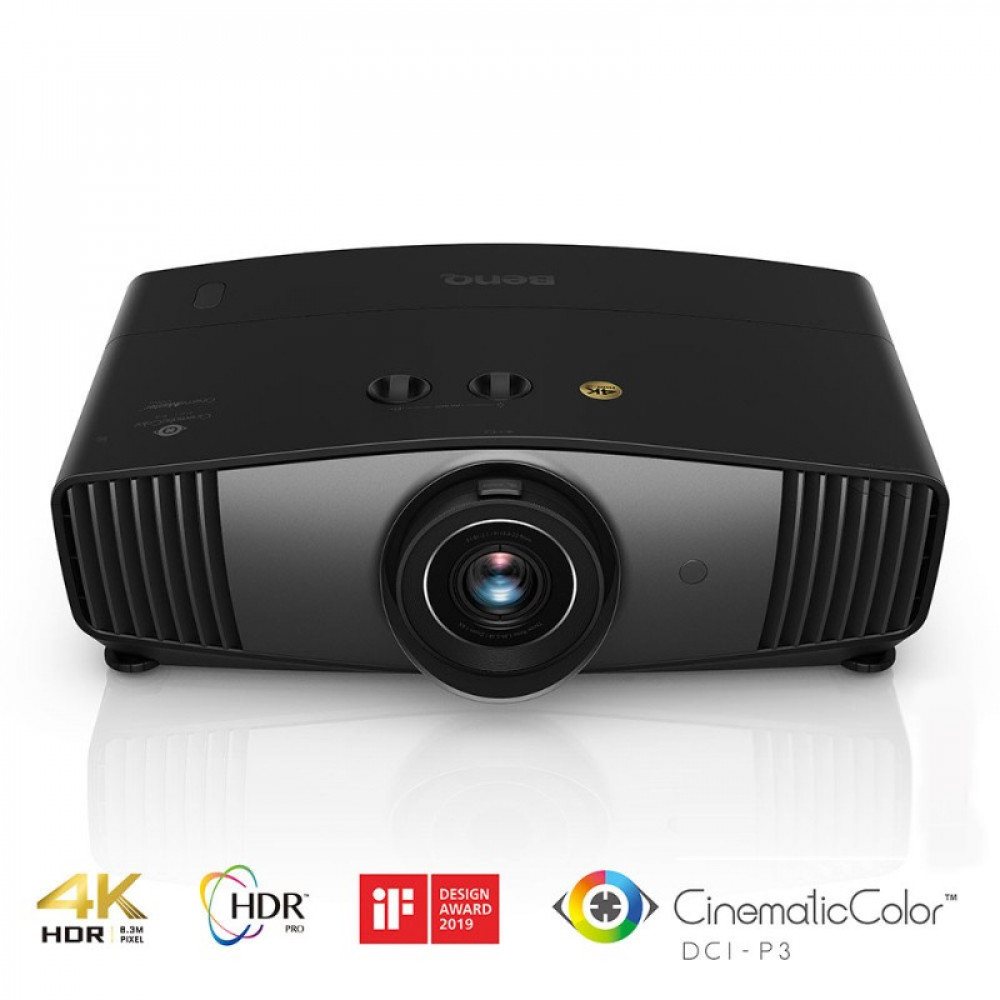

BenQ W5700

29 990 kr
klarna-logo
Välj version
Beställningsvara
29 990 kr
Beställningsvara
29 990 kr
Lägg i varukorgen
Beställningsvara (5-7 dagar för varor som finns i lager hos leverantören)
Fri frakt!
Garanti i 24 månader
Produktinformation

Projektor med 4K UHD-upplösning och 100% DCI-P3/Rec.709 och HDR-PRO

• 4K UHD-upplösning med 8,3 M pixlar
• BenQ CinematicColor™ för filmindustrins 100% DCI-P3/Rec.709 färgrymd
• HDR-PRO™ projektoroptimerad HDR-teknik (stöd för HDR10/HLG)


CinematicColor™ for Colors as Directors Envisioned

BenQ CinePrime W5700 4K HDR projector with CinematicColor™ technology elevates your cinematic enjoyment with a genuine movie-going experience. Powered by 100% coverage of the super-wide industry standard DCI-P3 color space, W5700 delivers precise colors and authentic emotions to perfectly preserve the director’s vision in immersive film-like cinematic experiences.

Super-Wide 100% DCI-P3 Color Rivaling Digital Cinemas

The motion picture industry’s loftiest color standards guarantee accurate reproduction of cinematic HDR colors across 4K UHD devices as filmmakers intended. Enhancing optimal colors for precise picture quality, BenQ CinematicColor™ technology achieves 100% of digital cinema industry’s super-wide DCI-P3 color space, which is 1.26 times of the Rec. 709 color space. With DCI-P3, you can enjoy richer, more lifelike colors than ever possible on a 1080p Full HD TV.


Factory Calibrated Out-of-the-Box Color Accuracy

Using special instruments and software, W5700 is tested and adjusted for precise D65 color temperature, gamma, black level, white level, neutral grey, RGBCMY color tracking, hue, saturation, brightness and output based on DCI-P3 and Rec. 709. All data from multiple interfaces is compiled for individual factory calibration reports, guaranteeing 100% Rec.709 and DCI-P3 color accuracy with Delta E<3* to reproduce authentic colors of Hollywood films.

*Delta E quantifies the difference between a reference color and the projector’s actual color based on L*a*b* coordinates to represent "a difference in sensation." Delta E<3 performance means virtually no perceptible color difference to the human eye. (Delta E<3 performance enabled in D. Cinema modes.)

The Art and Craft of True 4K UHD
4K UHD True 8.3 Million Pixel Perfection

Producing 4K UHD 3840x2160 resolution with 8.3 million distinct pixels for each frame, W5700 utilizes the new generation 0.47” single-DMD DLP technology to minimize the projector’s sleek, compact profile for modern lifestyles. With four times the resolution of Full HD 1080p, 4K UHD reduces pixel blur for awe-inspiring clarity and crisply defined fine details.


Precision 11-Element 6-Group All Glass 4K-optimized Lens Array

Super-high resolution 11-element lens array is structured into six groups with metal barrel and cell framework, far outshining 1080p projector technology with greater light penetration for long-lasting 4K intensity with heart-stopping color performance, clarity, and sharpness across the entire screen.


2D Lens Shift and 1.6X Big Zoom

W5700 offers H/V lens shift to fit perfectly into any room with a dynamic range of projection distances and heights. And the 1.6X big zoom offers a wide range of throw distances to significantly increase installation flexibility for diverse mounting and placement options, easily turning any space into a truly inspirational home cinema.


SPECIFICATIONS

Display

Projection System
DLP

Resolution
4K UHD (3840 x 2160)

Resolution Support
VGA (640 x 480) to 4K UHD (3840 x 2160)

Brightness (ANSI lumens)
1800 ANSI Lumens

Contrast Ratio (FOFO)
100,000:1 (w/ Dynamic Iris)

Display Color
30 Bits (1.07 billion colors)

Native Aspect Ratio
Native 16:9 (3 aspect ratio selectable)

Light Source
Lamp

Light Source Wattage
245W‎

Light Source Life
Normal 4,000 hours

Economic 10,000 hours
SmartEco 8,000 hours


Optical

Throw Ratio
1.36 ~ 2.18 (100" @ 3 m)

Zoom Ratio
1.6X

Lens
F/# 1.81~2.1, f 14.3(Wide) ~ 22.9(Tele)

Lens Shift
Vertical: ± 60% / Horizontal: ± 23%

Keystone Adjustment
1D, Vertical ± 40 degrees

Image Size
60" ~ 200" / 300" (Clear Focus / Maximum)

Horizontal Frequency
15K-102KHz

Vertical Scan Rate
23-120Hz



Picture Mode
*** ISF Disabled: Bright / Vivid / Cinema (Rec. 709) / D. Cinema / Silence / 3D / User 1 / HDR / HLG
**** ISF Enabled: Bright / Vivid / Cinema (Rec. 709) / D. Cinema/ Silence / ISF Night / ISF Day

Color Wheel Segment
6-Segment (RGBRGB)‎

Color Wheel Speed
2D: 96Hz ; 100Hz ; 120Hz
3D: 100Hz, 120Hz

Rec.709 Coverage
100%

DCI-P3 Coverage
100%


Interface

HDMI
x2 (HDMI 2.0b & HDCP 2.2)

USB Type A
x1 (5V/2.5A power supply)
x1 (USB 2.0 Media Reader/ Firmware upgrade)
x1 (USB 3.0 Media Reader/ Firmware upgrade)

USB Type mini B
x1 Firmware upgrade

Audio out (3.5mm Mini Jack)
x1

LAN (RJ45)
x1 RJ-45 LAN input jack (10/100M)

RS232 (DB-9pin)
x1 RS232 In (D-sub 9pin, male)

DC 12V Trigger (3.5mm Jack)
x1 (3.5mm Jack)

IR Receiver
x2 (Front/Top)

Wired Remote in (3.5mm Mini Jack)
x1


Special Feature

HDR
Yes (HDR10, HLG)

Motion Enhancer (MEMC)
Yes

ISF Night/ Day
Yes

LAN control
Yes

CinemaMaster Video +
Yes (4K Motion Enhancer, 4K Pixel Enhancer, Color Enhancer, Flesh Tone)


Compatibility

HDTV Compatibility
480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p


Power

Power Supply
VAC 100 ~ 240 (50/60Hz)

Typical Power Consumption
Max 405W, Normal 330W, Eco 247W

Standby Power Consumption
0.5W Max. at 100 ~ 240VAC

Network Stand-by Power Consumption
<2W

Acoustic Noise (Typ./Eco.)
32dBA / 26dBA

Operating Temperature
0~40 degrees (Celcius)


Dimension and Weight

Dimensions (W x H x D)(mm)
492 x 168 x 349

Net Weight (Kg/ lbs )
6.5kg / 14.3lbs


Accessories (Standard)

Remote Control w/ Battery
Remote Control w/ Battery x 1 (RCV016)

Power Cord (by region)
Power Cord (by region) x 1(3m)

User Manual CD
Yes (27L)

Quick Start Guide
Yes (9L)

Warranty Card (by region)
Yes

Lens cover
x 1


Accessories (Optional)

Spare Lamp Kit
Optional

Universal Ceiling Mount
Optional: Ceiling mount (CMG3)

3D Glasses
Optional


OSD

OSD Language
Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)


*** Default picture mode is Cinema (Rec. 709)
**** When ISF is enabled, default picture mode is ISF Night.

Modell
W5700
Artikelnummer
2018_9H.JKV77.17E
Varumärke
Modellbeskrivning
Modell W5700
Typ Projektor
Typ av projektor DLP
Tekniska specifikationer
Bildförhållande 16:9
Upplösning (B x H) 3840 x 2160 via Pixel-shift (1920 x 1080-panel)
Fläktljud (ECO) 26 dB
Ljuskälla Lampa
Lamptid I normalläge: 4000 timmar
Ljusstyrka   1800 ANSI Lumen
Optik
Min/Max-bildstorlek (diagonal) 60 ~ 200 / 300 (Clear Focus / Maximum) tum
Throw ratio   1.36 ~ 2.18
Zoom 1.6X
Bildingångar / utgångar
HDMI 2
HDMI-specifikationer
HDCP-version HDCP 2.2
HDMI-version HDMI 2.0b
Bildspecifikationer
Stöd för 3D Ja
Vid stöd för 3D, kompletterande information 3D-glasögon ingår ej
Energi
Energiförbrukning i drift Max 405 W, Normal 330 W, Eco 247 W
Mått och vikt
Bredd 492 mm
Djup 349 mm
Höjd 168 mm
Vikt 6.5 kg
