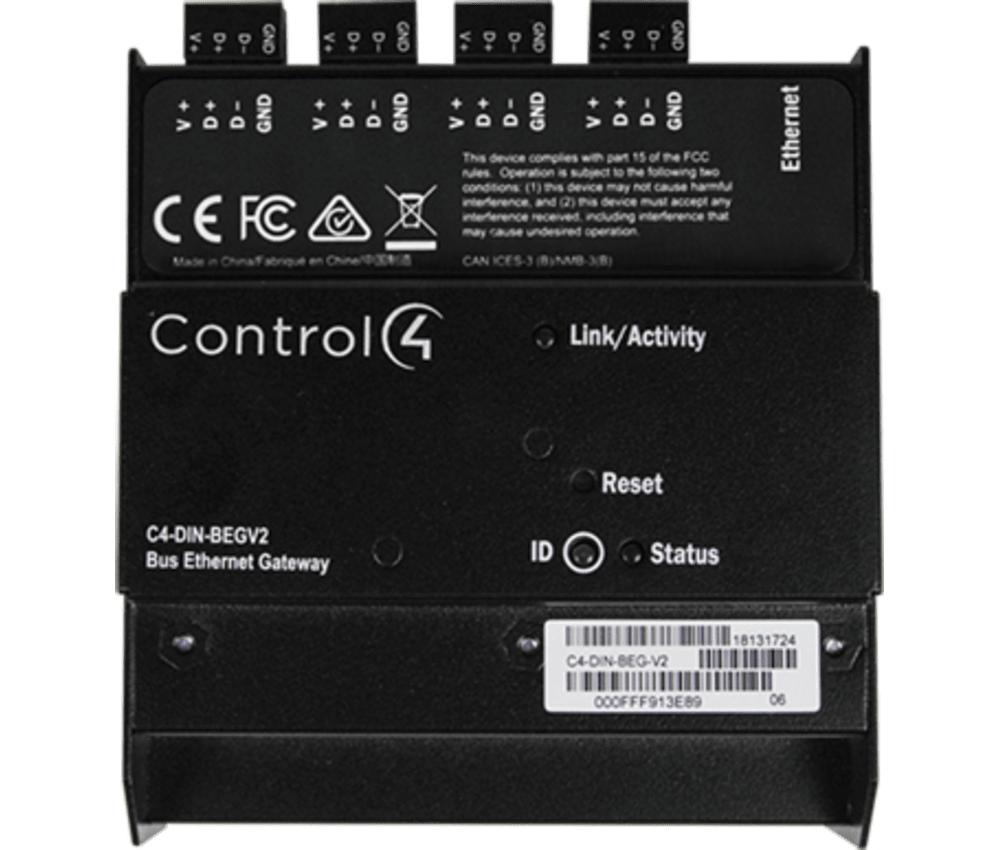

Control4® Bus Ethernet Gateway V2
C4-DIN-BEG-V2

The Bus Ethernet Gateway is the connection point for all wired keypads and other devices on the Control4 Centralized Lighting keypad bus. The Ethernet Gateway is designed to convert RS-485 communication to Ethernet for usage with Centralized Lighting modules and a Control4 controller.

Important Note - If you are ordering a light almond color change kit to match existing products and installations ordered prior to October 1, 2016, please order the kit in Legacy Light Almond (C4-CKSWITCH-LL). If you are placing an order for a new light almond installation and do not need to color match an existing product, order this product in Light Almond (C4-CKSWITCH-LA).

Features

• Connection point for wired keypads and other devices on the RS-485 bus
• Converts keypad bus communication to Ethernet
• Installs in either the Control4 5-Slot or 2-Slot Panel or a third-party DIN rail panel
• Powered by the 48V Bus Power Supply
• See the Keypad Bus Wiring Guide (ctrl4.co/buswiring) for details on maximum number of devices per gateway


Specifications

Power Input
24-48VDC

Voltage
24-48V

Power Consumption
1.0W

Control Communications
10/100 Ethernet

Operating Temperature
0° C to 40° C

Storage Temperature
-20° C to 70° C

Operating Humidity
5% to 95% non-condensing

Ethernet Ports
(1) RJ-45 for control communications

Dimensions (W x H x D)
113.9 x 108.6 x 54.6 mm

Weight
0.54 kg
Shipping: 0.70 kg
