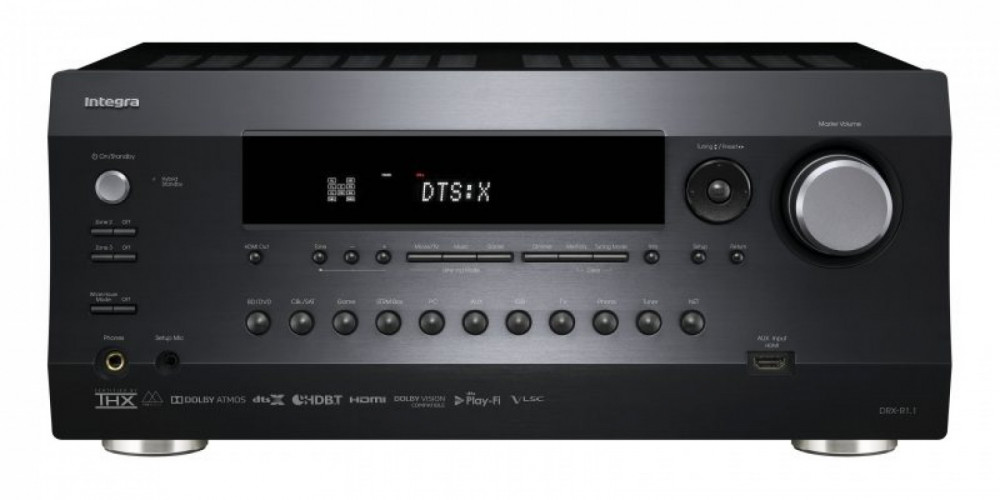

Integra DRX-R1.1

Garanti i 24 månader

Kontakta oss för frågor eller köp!

11.2 kanals hemmabioreceiver

- Med Dolby Atmos & DTS:X (5.2.4 - 7.2.4)
- THX Select
- HD-BaseT (Zone2)
- HDCP 2.2/4K/HDR
- 140w/ch 8ohm
- 8st HDMI in / 2st HDMI ut
- App Control
- IP / RS-232 / IR Control
- Spotify / Deezer / TuneIn
- Airplay
- Google Cast
- Pow. Zone 2 DAC (HDMI, Spdif, NET, USB) Pow. Zone 3

Introducing the all-new Integra audio-video receiver flagship, unsurpassed in reference all-in-one home entertainment. Double-skinned and braced chassis provides rigidity for full-floating circuitry, custom shielded power supply, and shielded amplification, all of which harmonize to isolate signals from noise. The result is absolute sonic purity at earth-shaking volume. Equipped with every convenience for whole-home audiophile sound, the DRX-R1.1 carries the Integra legacy into the future.

Advanced Features

• THX® Certified Select™ for Theater Reference Sound

• Enhanced HDBaseT™ LAN Connection Supporting HDCP 2.2-compliant 4 K / 60 Hz / 4:4:4 Video Transmission and POC (Power Over Cable) in Combination with Optional HDB-RX1 HDBaseT Receiver, IR and RS-232C Control

• Supports Dolby Atmos® and DTS:X™ Formats Up to 7.2.4 Channels

• HDMI® 8 In (1 Front*1), Main Out, and Sub / Zone 2 Out with HDCP 2.2, 4 K / 60 Hz, Dolby Vision™,

• HDR 10, HLG (Hybrid Log-Gamma), WCG (Wide Color Gamut), Extended Colorimetry (sYCC601, Adobe RGB, Adobe YYC601), and BT.2020 Video Pass-through

• AccuEQ Auto Speaker Calibration Technology with Standing Wave Elimination and User-Definited Customizable Filters

• AccuReflex Phase Alignment Technology for Dolby Atmos-enabled Speakers

• Chromecast bulit-in Wireless Audio Platform and Google Assistant Voice Control Support

• DTS Play-Fi® Multi-room Hi-Fi Music Streaming Capability

• AirPlay Audio Streaming from iTunes and iPad, iPhone, and iPod touch

• Spotify® Connect, TIDAL, TuneIn, and Deezer Services*3

• FlareConnect™*3 Multi-room Network and Analog Wireless Audio Distribution

• Integra Control Pro App for iOS and Android™ Devices*4 Enables Easy Initial Setup, Multi-room Management, and System Control

• Plays Hi-Res Audio Files Including DSD Direct 11.2 MHz Stereo, 192 / 24 PCM, Dolby® TrueHD*5, FLAC, WAV, ALAC, AIFF, MP3, and AAC via Network and USB Input

• 192 kHz Audio Scaling and Upsampling Mode for Wider Dynamic Range

• Direct Mode for Audio Reproduction Close to Original Source Quality

Other Features

• 200 W/Ch at 6 Ω, 1 kHz, 1 % THD 1 Channel Driven, IEC

• Dual-skin Insulated Chassis with Exclusive Cross-bracing System

• Additional Anchor Points for Outer Chassis

• Custom-made Magnetic-flux Low-Hum EI Power Transformer

• Floating Isolated Digital Processing Boards with Separate Shielded Power Supply

• Insulated Block Case for Hybrid Digital Low-Impedance, High-Current Amplifier Design

• Custom Output Filtering for Instant Dynamic Response, Low Distortion, and Musicality

• Hand-selected Audio-tuned Parts with Conductive Copper Chassis Screws

• Extra-large Anti-Standing-Wave Insulator Feet Improve Sound Localization and Tone Response

• Class-leading Processing Featuring 32-bit SHARC DSPs (x3), Independent Differential Audio DACs for Stereo Front L / R (768 kHz / 32-bit AK4490), Surround (768 kHz / 32-bit AK4458), and Separate DACs for Zone 2 / Zone 3 (192 kHz / 24-bit AK4388)

• VLSC™ (Vector Linear Shaping Circuitry) Pulse Noise Filtering (All Channels)

• PLL (Phase Locked Loop) Jitter-cleaning Circuitry for S/PDIF Audio

• A/V Sync Control (-100 ms to +500 ms in 1 ms Steps at 48 kHz)

• Crossover Adjustment for Each Channel (40 / 45 / 50 / 55 / 60 / 70 / 80 / 90 / 100 / 110 / 120 / 130 / 150 / 180 / 200 Hz)

• Audiophile Grade Anti-Resonant Aluminum Front Panel

• 40 FM / AM and Internet Radio Random Presets with Station Naming

• Sleep Timer, HDMI Passthrough, and Network Standby

• 5 Digital Audio Inputs (3 Optical and 2 Gold-plated Coaxial, Assignable)

• 7 Gold-plated Analog Audio Inputs (RCA)

• Gold-plated Phono Input (MM) for Turntable Connection

• 2 Gold-plated Composite Video Inputs

• 2 Gold-plated Component Video Inputs and 1 Gold-plated Output

• USB Input (5 V / 1 A) for Audio Playback

• Gold-plated 11.2-Multichannel Pre Outs

• Audiophile-grade Transparent Banana Plug-Compatible Speaker Binding Posts

Custom Integration Features

• Zone 2 HDMI Output for HDMI Inputs 1–5 with Matrix Switching, Zone 2 OSD Including Volume Bar Overlay, Network Service Selection, and More

• Bi-directional IP and RS-232 Port for Advanced Home Automation Control Systems

• 2 IR Inputs and 1 Output

• 3 Programmable 12V Trigger Outputs with Adjustable Delay (A: 100 mA, B: 25 mA, C: 25 mA)

• Zone 2 and Zone 3 Pre- / Line Outputs

• Powered Zone 2 and Powered Zone 3 Speaker Outputs

• Zone 2 DAC for HDMI IN 1-5, SPDIF (PCM), NET, and USB Sources

• Zone 3 DAC for NET and USB Sources

• One-touch Whole House Mode for All-Channel Stereo Distribution of Digital, Network, HDMI, S/PDIF, USB, and Analog Audio Sources to Three Zones

• Dealer Settings Memory Store and Recall

• Remote Play Zone Function Enables Zone Selection for Audio Playback via Chromecast built-in, AirPlay, Spotify Connect, and DMR (Digital Media Render) Smartphone

• Front Panel Lock / Unlock and IR Lock / Unlock Capability

• Reset Function, Firmware Updates, and Temperature Based Fan Control via 3rd Party Control Systems

• Firmware Updates via ISCP for Dealers and Installers

• Independent Bass / Treble / Balance Controls for All Zones

• Optional Rack-Mount Kit Available (IRK-180-4C)

*1 Front HDMI Input does not support 4K/60p, Dolby Vision, HDR10, BT.2020, or HDCP 2.2.
*2 Availability of services may vary with region. Please confirm before purchase. Subscription may also be required.
*3 Enabled via firmware update.
*4 For iOS and Android devices. Please check App Store or Google Play for device and OS requirements.
*5 Dolby TrueHD playback via USB input only.

Modell DRX-R1.1
Typ Hemmabioreceiver
Tekniska specifikationer
Antal kanaler   11.2
Effekt per kanal 140 W (8 ohm)
Impedans 4 Ω–16 Ω
FM 40 stationer FM/AM
Energiförbrukning i drift 360 W
Energiförbrukning i standby-läge 0.1 W
Mått och vikt
Bredd 435 mm
Djup 446.5 mm
Höjd 197 mm
Vikt 19.1 kg
