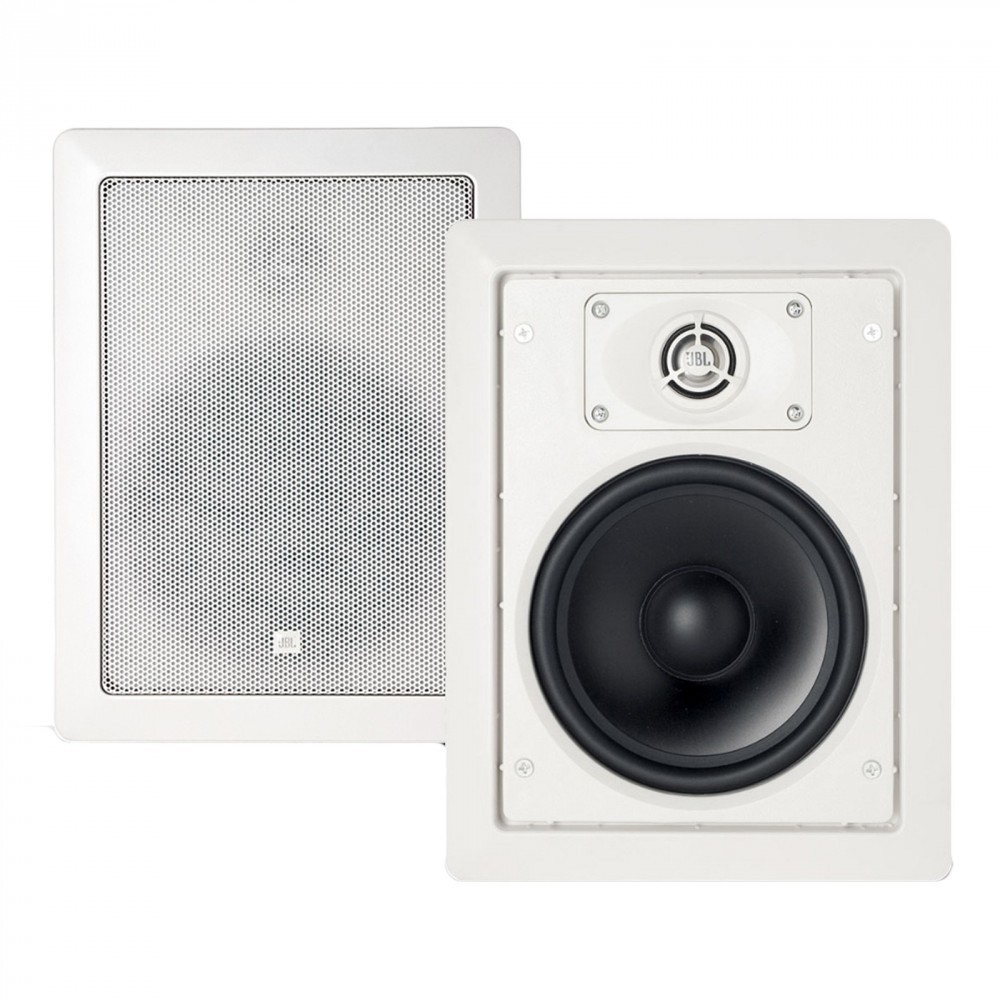

JBL CONTROL 126W VIT
2 695 kr
Just nu: Pris 1695 kr/st. Använd rabattkod "126W" i varukorgen.
Key Features:
• Components:
- 165 mm (6½ in) polymer-coated aluminum-cone woofer with pure butyl rubber surround.
- 25 mm (1 in) pure-titanium dome lowdiffraction swivel aimable titanium tweeter.
• High-slope crossover for natural midrange sound.
• Extended bandwidth performance of 38 Hz – 20 kHz.
• 50W continuous (100W program, 200W peak) power handling (126W).
The Control 126W is a premium in-wall speaker within the JBL Professional Control® Contractor line designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, or any critical listening application where top performance from a loudspeaker with minimal visual impact is required.
The high-performance woofer features a polymer-coated aluminum cone for high performance down to the 38 Hz and pure butyl rubber surround for long-life and high reliability along with extended-polepiece magnet design for long excursion and tight, low bass. The pure titanium dome high frequency driver is loaded with a built-in EOS™ (Elliptical Oblate Spheroidal) waveguide for low distortion and a smooth frequency response. A low-diffraction swivelmounting system enables the user to direct high frequencies where required without the diffraction distortion inherent in other aimable tweeter designs. A high-slope crossover network maintains natural midrange sound and produces more even coverage throughout the listening area. The optional Control 126WT version includes a multitaptransformer for 70V/100V systems.
The Control 100 Series speakers are voiced similarly to other JBL Control Contractor models, allowing mixing with surface-mount and in-ceiling speakers within a single listening space. The premium sound quality makes these loudspeakers ideal for critical listening environments, yet they are high power and rugged enough to handle venues requiring high-SPL, heavy duty-cycle music.
The speaker fits into the wall space of ordinary stud-wall construction. An optional rough-in frame is available for installing the speakers into standard stud walls in newconstruction projects. As is the case with all Control Contractor speakers, the baffles and grilles are paintable to match any décor.
Specifications:
Frequency Range (-10 dB)*1: 38 Hz - 20 kHz
Continuous Power Capacity*2:
200 Watts Peak
100 Watts Continuous Program
50 Watts Continuous Pink Noise
Sensitivity*3: 88 dB SPL, 1W, 1 m
Nominal Impedance (126W): 8 ohms
Transformer Taps (126WT):
70V: 30W, 15W, 7.5W & 3.7W taps
100V: 30W, 15W & 7.5W taps
Transducers:
Low-Frequency: 165 mm (6.5 in) polymer-coated aluminum cone, pure butyl rubber surround.
High-Frequency: 25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability.
Physical:
Termination: Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2
Crossover Network: 3rd order (18 dB/oct) low-pass to the woofer and 3rd order (18 dB/oct) high-pass to the tweeter.
Optimum Air Cavity Behind Speaker: 20 to 40 liters (0.7 to 1.4 cu ft)
Outside Dimensions (H x W x D): 280 x 215 x 105 mm (11 x 8.5 x 4.1 in), 99 mm (3.8 in) front of wall to back of speaker.
Cutout Size (H x W): 246 x 181 mm (9.7 x 7.2 in), Cutout template included.
Maximum Wall Thickness: 32 mm (1.25 in)
Net Weight (ea): 126W: 2.1 kg (4.5 lb), 126WT: 2.7 kg (5.9 lb)
Shipping Weight (pair): 126W: 4.8 kg (10.5 lb), 126WT: 6.2 kg (13.5 lb)
Included Accessories: Cutout template & paint shield
Optional Accessories: MTC-126RIF Rough-In Frame for new construction
installation to wallstuds.
*1 Half-space (mounted in-wall)
*2 Continuous Pink Noise rating is IEC-shaped pink noise with a 6 dB crest factor.
*3 Half-space (mounted in-wall), average 100 Hz to 10 kHz
Pris per st.
Modellbeskrivning | |
---|---|
Modell
|
CONTROL 126W |
Typ av produkt
|
In-wall högtalare |
Aktiv/passiv modell
|
Passiv |
