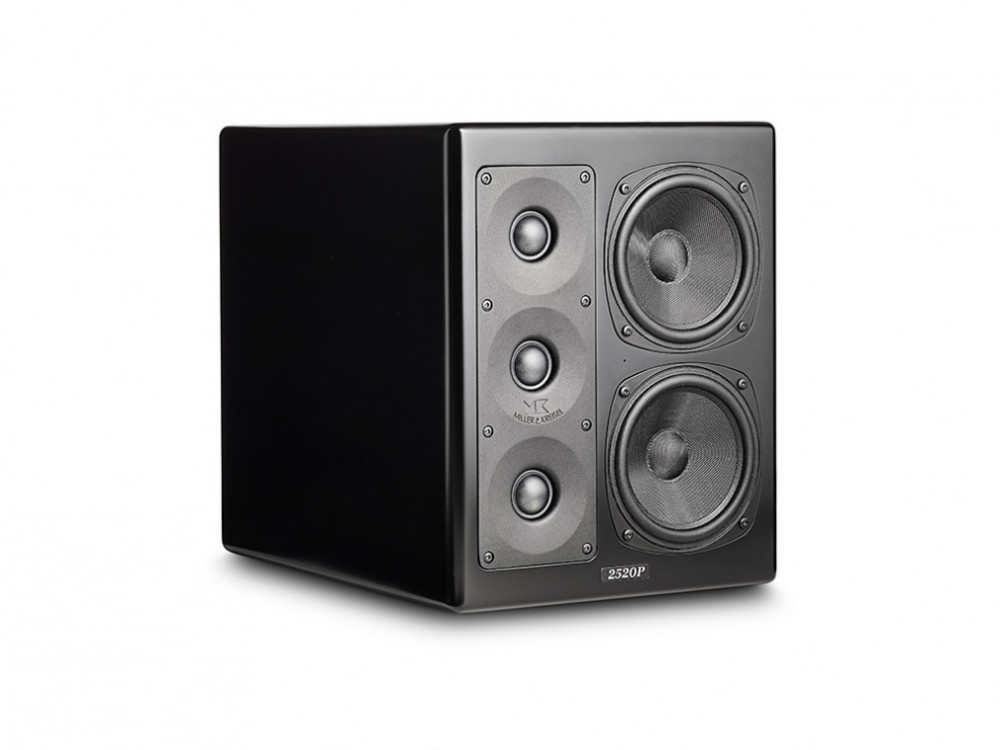

M&K Sound Miller & Kreisel MPS-2520P

Aktiv studiomonitor MPS2520P New Edition

Studiomonitorhögtalare att användas för referensinspelningar, redigering, bearbetning och mastermixning för musik och filmproduktioner.

The MPS2520P studio monitor are featured with a total of 5 loudspeaker units providing impressive sound impact in an ultra-compact format.

The dual channel power amplifiers drive the bass-midrange and high frequency sections with great precision and full control of signal dynamics.

The 5.25” bass-midrange drivers are tuned for sealed box with 0.707 box Q to provide an absolute optimal system step response control. Combined with triple stacked tweeters operating down to 1.2Khz, makes the MPS2520P sound response become fast and sharp, with superior qualities to control reference recordings, editing, processing, and master mixing for music and movie productions.

MPS2520P are designed for easy system setup using the build in high pass filter for smooth integration with M&K subwoofers.


Specifications

Amplifier power bass-midrange:
200watt RMS/400watt peak

Amplifier power high frequency:
180watt RMS/360watt peak

Bass/Midrange:
2 x 5.25 Glassfibre

High frequency Drivers:
3 x 1,1” soft fabric dome

Frequency Response:
80-12KHz +/-1dB / 12-20KHz +/-2dB

Total Harmonic distortion:
0.002% into 4 ohms LF Channel / 0.03% into 4 ohms HF channel

Signal to noise ratio:
100dB

AC power consumption:
Standby/Average/Max 17W, 45W, 360W

AC line voltage:
115VAC/60Hz 5A – 230VAC/60Hz 3.15A

Input impedance unbalanced:
11Kohm / balanced 22Kohm

Input sensitivity unbalanced
100mV 90dB 1m / balanced 200mV 90dB 1m

Max output level:
110dB/100Hz

Max input:
24dBu balanced

High pass filter:
Fixed 80 Hz (24dB)

Vertical directivity control:
Wide/Narrow – 50/30 Deg.

Dimensions HxWxD:
327 x 270 x 401 mm

Weight:
18 kg

Finish:
Black satin
