Subwoofer för inbyggnad (tak), i Architectural-serien från Origin Acoustics
DSUB 8 Series
Director Collection
The Director Multi-Finish System is a minimal-aesthetic fully distributed in-ceiling audio system engineered to provide deep ample bass and even sound coverage from a port-tuned box subwoofer and an arrangement of in-ceiling speakers in multiple finishes to mimic the appearance of stylish recessed lighting.
Clean, Powerful Bass
Only audible worthy bass frequencies pass through the port of the DSUB6 from the bandpass to deliver a powerful listening experience. This ensures power is strictly utilized in creating the true fidelity low-end output.
Dueling Effort
Two high-density aluminum woofers sit across from one another inside of the subwoofer enclosure. As a result, the output is enhanced while distortion and cabinet vibrations are significantly reduced.
Multi-Finish Options
The DSUB6F3 comes with magnetic bezel-less grilles in both square and round finishes to match perfectly with designer recessed lighting.
Paintable Low Profile Grille
As expected with all Origin Acoustics speakers, the DSUB8 delivers high performance audio while remaining completely concealed from plain sight with a sleek paintable bezel-less magnetic grille.
Passive Crossover
The DSUB6F3 contains a thorough passive crossover that maintains low frequency response while passing off the appropriate mid and high frequencies to the surrounding D38 satellites.
Specifications
Model: DSUB8
Part Number: DSUB8F680
Port-tube Sizes: 8" (203mm)
Woofer Cone: Polypropylene
Woofer Dimensions: Dual 8" (203mm)
Frequency Response: 37Hz - 200 kHz ± 3dB
Impedance: 8 ohm
Power Handling: 150 Watts

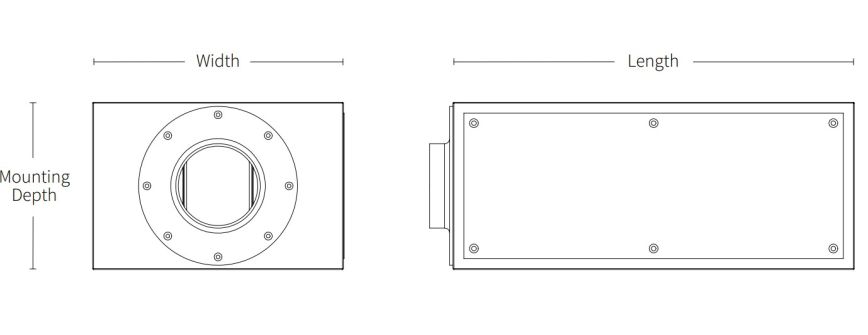

Depth: 9.45" (240mm)
Dimensions: 9.45 x 14.02 x 25.59” (240 x 356 x 650mm)
Grille Diameter: 10" (254mm)
Cutout Diameter: 8.75” (222mm)
Mounting Depth: 9.55” (243mm)
