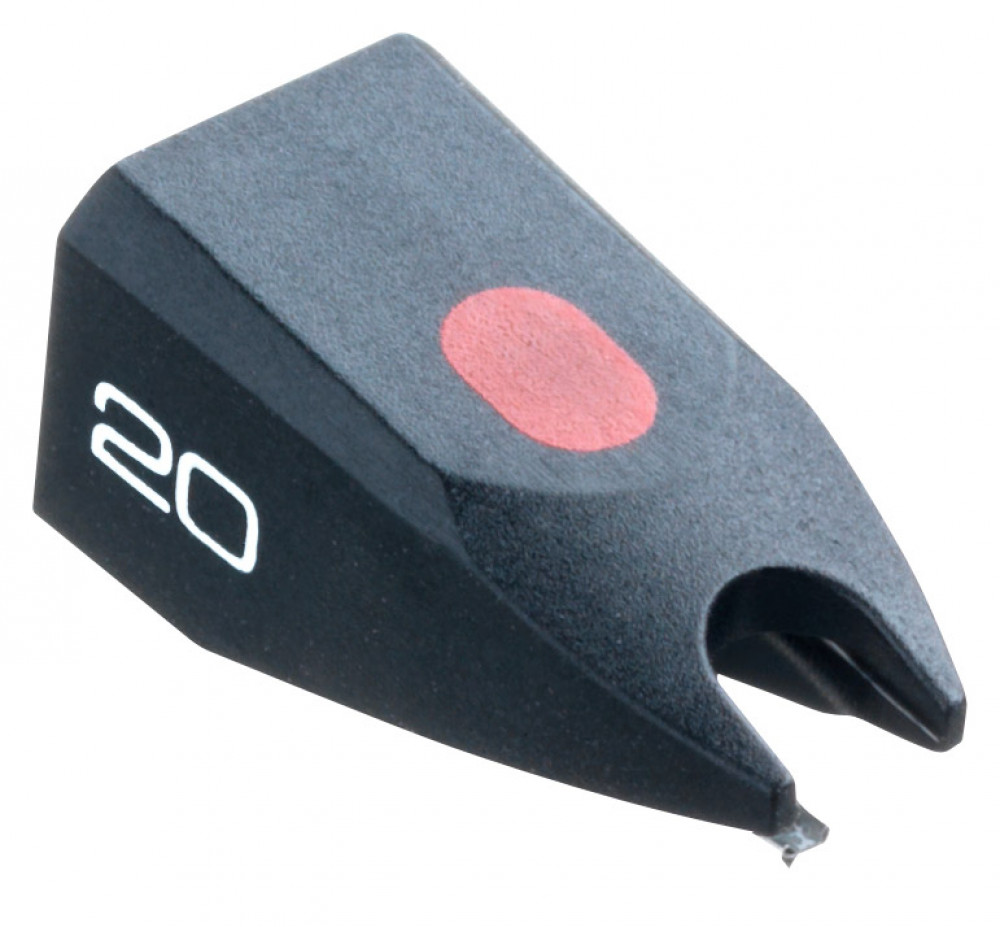

Ortofon Stylus 20

Ortofon stylus original ersättningsnål

Stylus 20 technical specifications

Frequency range - 20-27.000 Hz
Frequency response - 20-20.000 Hz + 2 / - 3 dB
Tracking ability at 315Hz at recommended tracking force *) - 80 µm
Compliance, dynamic, lateral - 25 µm/mN
Stylus type - Nude Elliptical
Stylus tip radius - r/R 8/18 µm
Equivalent stylus tip mass - 0,4 mg
Tracking force range - 1.25-1.75 g (12.5-17.5 mN)
Tracking force, recommended - 1.5 g (15 mN)
Tracking angle - 20°
Stylus colour - Black
*) Typical value
Recommended for following cartridges: Super OM 20, OM 20, OMP 20, OMB 20, LM 20, Concorde 20, LM 20H, TM 20U, TM 20H
