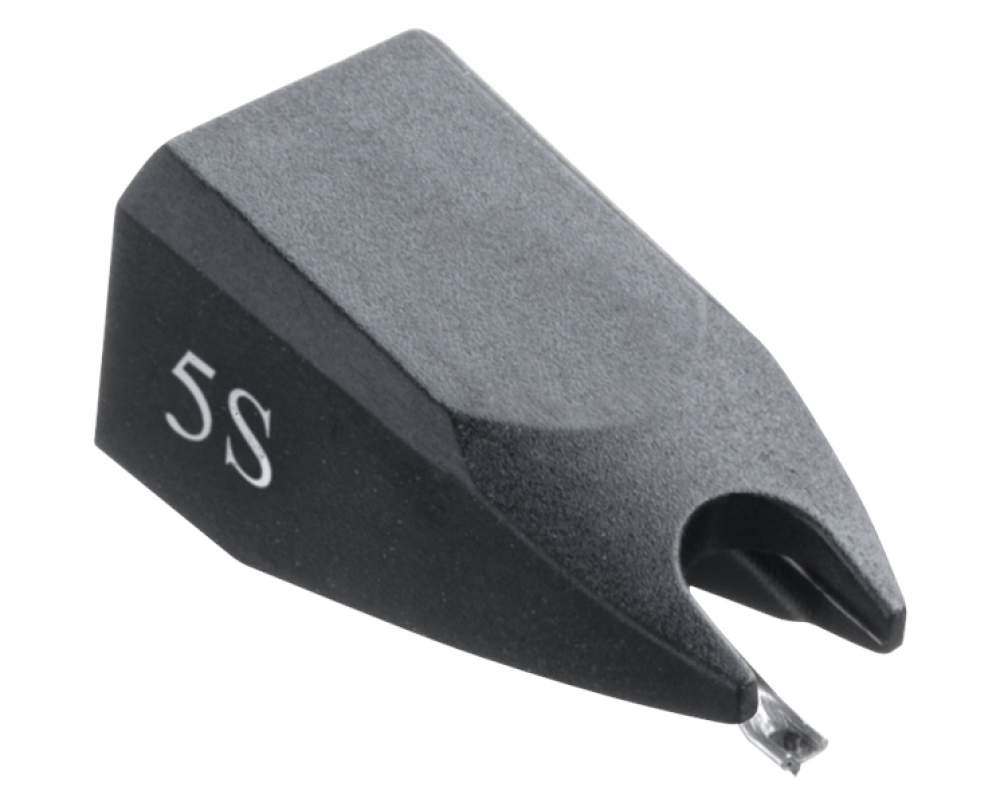

Ortofon Stylus 5S

Ortofon stylus original ersättningsnål

Stylus 5S technical specifications

Frequency range at -3dB - 20-20.000 Hz
Frequency response - 20-22.000 Hz
Tracking ability at 315Hz at recommended tracking force *) - 60 µm
Compliance, dynamic, lateral - 20 µm/mN
Stylus type - Spherical
Stylus tip radius - R 18 µm
Tracking force range - 1.5-2.0 g (15-20 mN)
Tracking force, recommended - 1.75 g (17,5 mN)
Tracking angle - 20°
Stylus colour - Black
Recommended for OM 5S
*) Typical value
