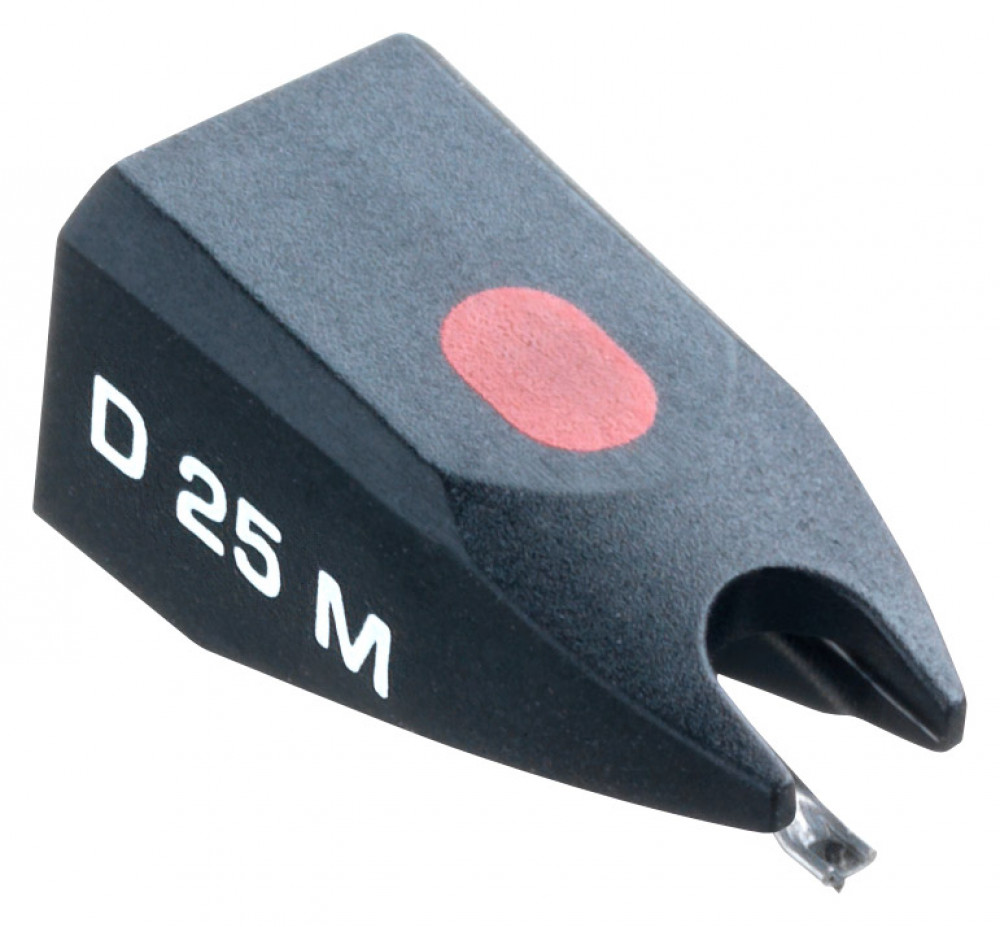

Ortofon Stylus D25M

Ortofon stylus original ersättningsnål

Stylus D25M technical specifications

Frequency range - 20-20.000 Hz
Frequency response - 20-18.000 Hz + 2 / - 3 dB
Tracking ability at 315Hz at recommended tracking force *) - 70 µm
Compliance, dynamic, lateral - 7 µm/mN
Stylus type - Spherical
Stylus tip radius - R 25µm
Equivalent stylus tip mass - 0.5 mg
Tracking force range - 2.0-3.0 g (20-30 mN)
Tracking force, recommended - 2.5 g (25 mN)
Tracking angle - 20°
Stylus colour - Black
*) Typical value
Recommended for following cartridges: all Super OM, OM, OMP, TM, Concorde cartridges for playing micro-groove records.
