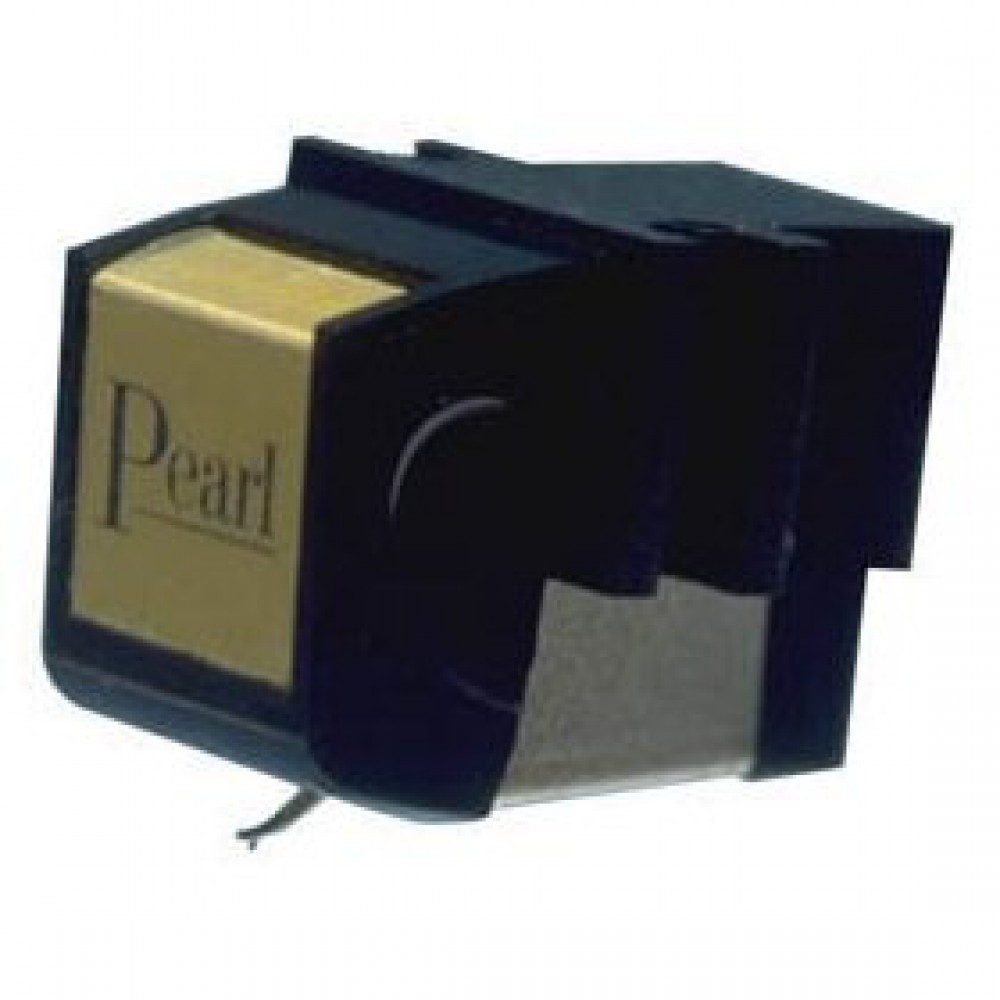

MM-Pickup (Moving Magnet)
Moving magnet phono cartridge with alloy cantilever, bonded elliptical stylus and 4.0mV output.
Technical Specifications:
Cartridge Type: MM
Frequency Response: 12Hz – 30KHz
Output Voltage/Channel: 3.5mV
Channel Separation: 30db
Channel Balance: 0.5db
Compliance: 15(x10-6cm/dyne)
Stylus Size/Shape: .2x.8/Elliptical
Load Impedance: 47kΩ
Tracking Force Range: 1.5-2.0 grams
Recommended Force: 2.0 grams
Cartridge Weight: 6.0 grams
