CYP PU-1106 HDMI VIA CAT6

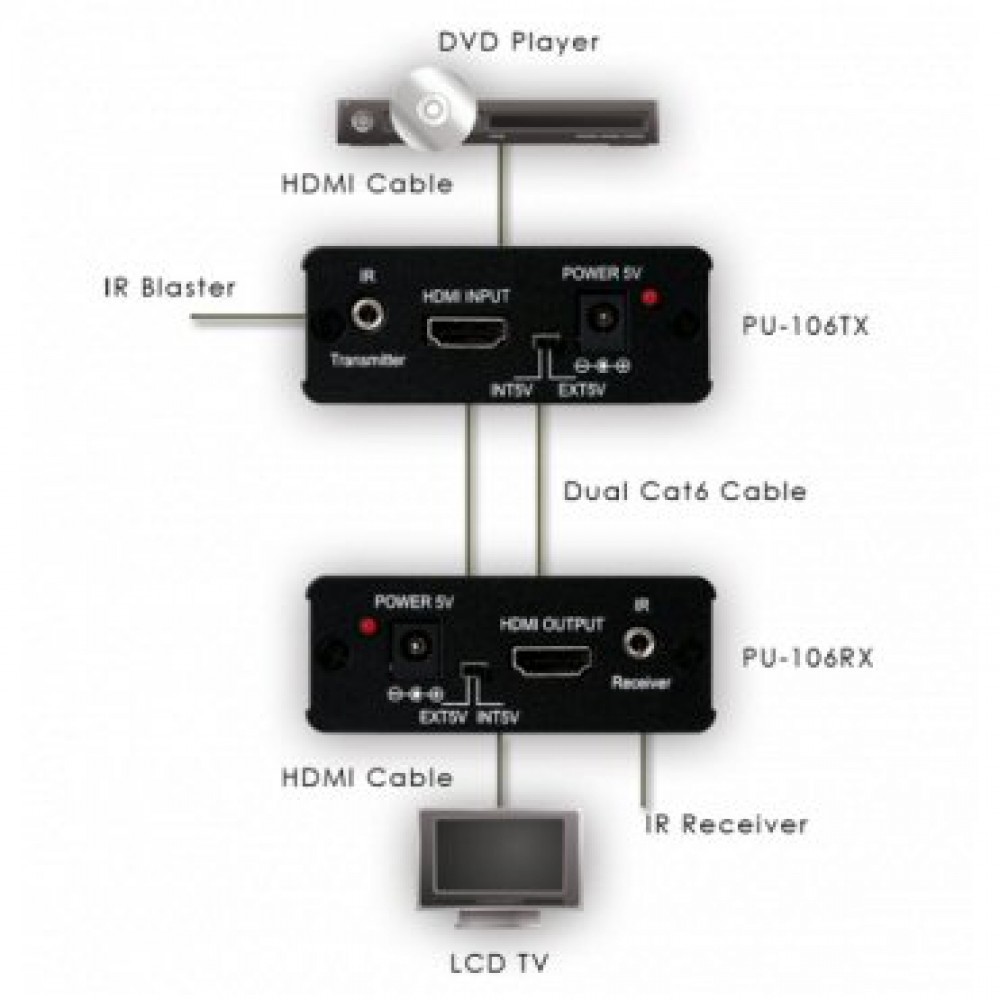

Obs! Bilden föreställer en PU106.

En suverän Cat6 lösning där du kan köra HDMI upp till 1080p 8 bitars färgdjup upp till 45m över två Cat6 kablar. Den har även en inbyggd fjärrförlängare som gör att du kan använda din fjärr på den mottagande platsen.

The Puma HDMI over CAT5e/6 transmitters and receivers are the perfect solution to extend HDMI signals via CAT5e/6 cabling up to 30 metres. The PU-106 also allows you to use your existing Remote Control to control your device with the in-built IR Blaster.

Features

Compliant with V1.3 HDMI, HDCP 1.1 and DVII.1 standards.
Dolby True HD, Dolby Digital Plus & DTS-HD Master Audio.
Supports CAT5e/6 cables for data/DDC transmission. CAT6 is recommended for maximum performance.
Equalises and recovers incoming TMDS data before re-transmitting to ensure optimum signal quality.

Supports High Definition resolution. 1080P/8-bit resolution up to 30-45 metres – 1080P/12-bit resolution up to 15-20 metres.

CEC bypass and IR blaster.

Specification

Inputs Transmitter: 1x HDMI female port, 1x IR jack. Receiver: 2 x CAT5e/6, 1 x IR jack.

Outputs Transmitter: 2 x CAT5e/6, 1 x IR jack. Receiver: 1x HDMI female port, 1x IR jack.
Power 1x 5V/2.6A DC (US/EU Standards, CE/FCC/UL Certified
Dimensions 50(W) x 62(D) x 23(H)mm
Weight 90g
