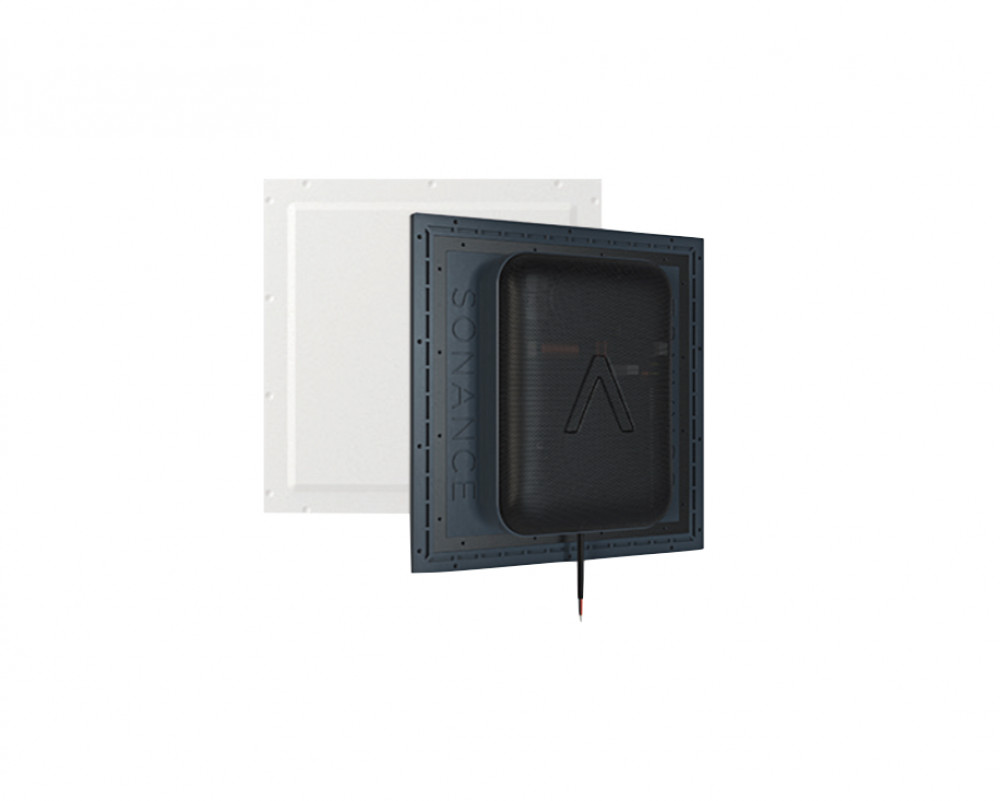

Sonance IS6 - Invisible Series Speaker /st

Sonance Invisible Series Speakers Featuring Motion Flex Technology

KEY FEATURES

MOTION FLEX TECHNOLOGY
A suite of advancements in invisible speaker engineering for unparalleled acoustic performance from an invisible speaker

WAVE FLEX DRIVE UNIT
High-bandwidth midrange and high-frequency transducer that leverage the bending-wave principle, delivering velvety-smooth mids and crystal-clear highs

AIR FLEX WOOFER
Glass-fiber woofer coupled to an acoustically inert diaphragm to move a pocket of air like a piston for robust and powerful bass

ACOUSTICALLY ISOLATED BAFFLE
The diaphragm is split into two active areas that are completely isolated to enable ultra-low distortion sonic transparency like never before

CONSTANT DIRECTIVITY CROSSOVER (CDX)
The proprietary Sonance CDX provides uniquely smooth off-axis frequency response for greater fidelity and coverage and almost 180° of horizontal and vertical dispersion

SONANCE DEPTH IDENIFICATION SENSING CALIBRATION (DISC) SYSTEM
Uses a high-accuracy depth gauge and embedded locator discs to measure the thickness of a finish applied over the surface of a Sonance Invisible Speaker, allowing for a consistent finish and performance within specifications every time

Specifications IS6:

SKU: 93478
Wave Flex Drive Unit: 20in² (127cm²) bending wave diaphragm 1.75" (44mm) voice coil
Air Flex Woofer: 98in² (633cm²) air pulse diaphragm 6.5" (165mm) carbon fiber woofer
Frequency Response: 50Hz–30kHz (±3dB)
Impedance: 6 Ohms Nominal
Power Handling (RMS): 100W
Sensitivity (2.83V/1m): 84dB
Transformer: —
Transformer Taps: —
Overload Protection: —
Dispersion: 170º hemispherical up to 10kHz
Dims (WxHxD): 16.10" x 16.10" x 3.15" (409mm x 409mm x 80mm)
Mounting Depth: 2.68" (68mm)
Back Dims (WxH): 9.49” x 12.95” (241mm x 329mm)
Product Weight: 12.24 lbs (5.55 kgs)
Shipping Weight: 31.69 lbs (14.375 kgs)
Compatible Space Saver: IS-SAVER-S, SKU 93492
Compatible Enclosure: IS-ENCL-S, SKU 93488
