OMNI-6T Rundstrålande utomhushögtalare

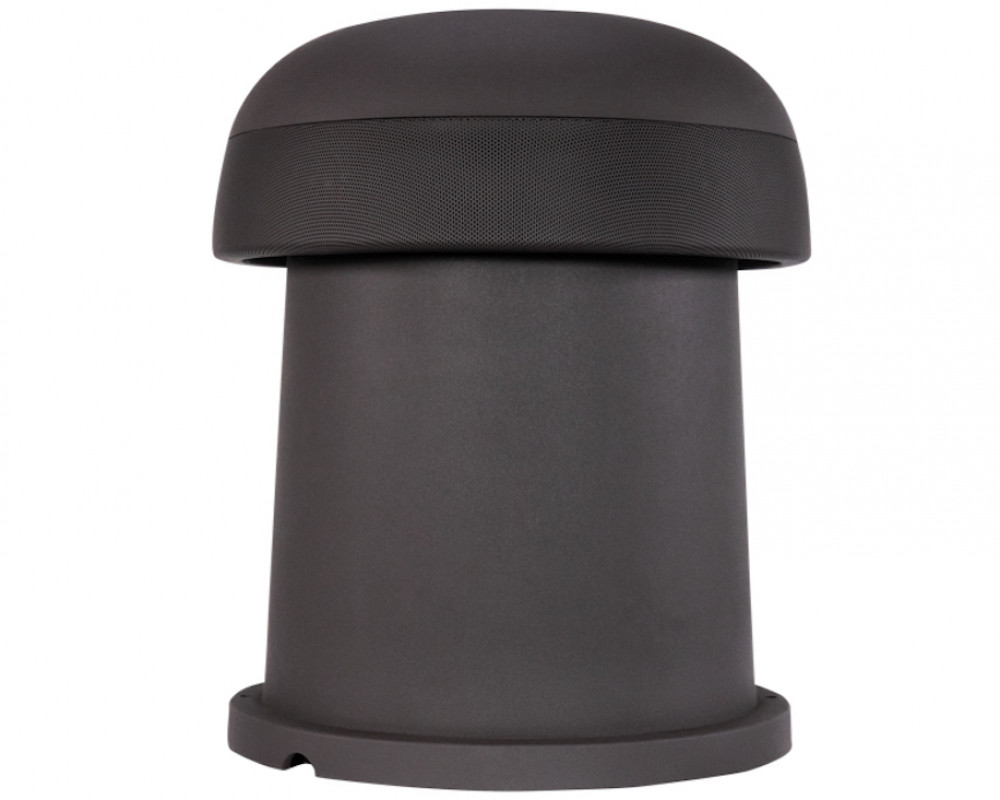

The Sonance OMNI-6T is an Omnidirectional 70V/100V/8 Ohm loudspeaker, designed to deliver 360 degree coverage in applications such as resort gardens, hotel pool areas, theme parks, outdoor shopping malls, and open residential outdoor spaces.
Design
The OMNI-6T is designed with a textured brown finish in a small form factor to blend in discreetly with surrounding landscape. Its rugged build and IP66 waterproof rating prepares OMNI for virtually any outdoor terrain.
Performance

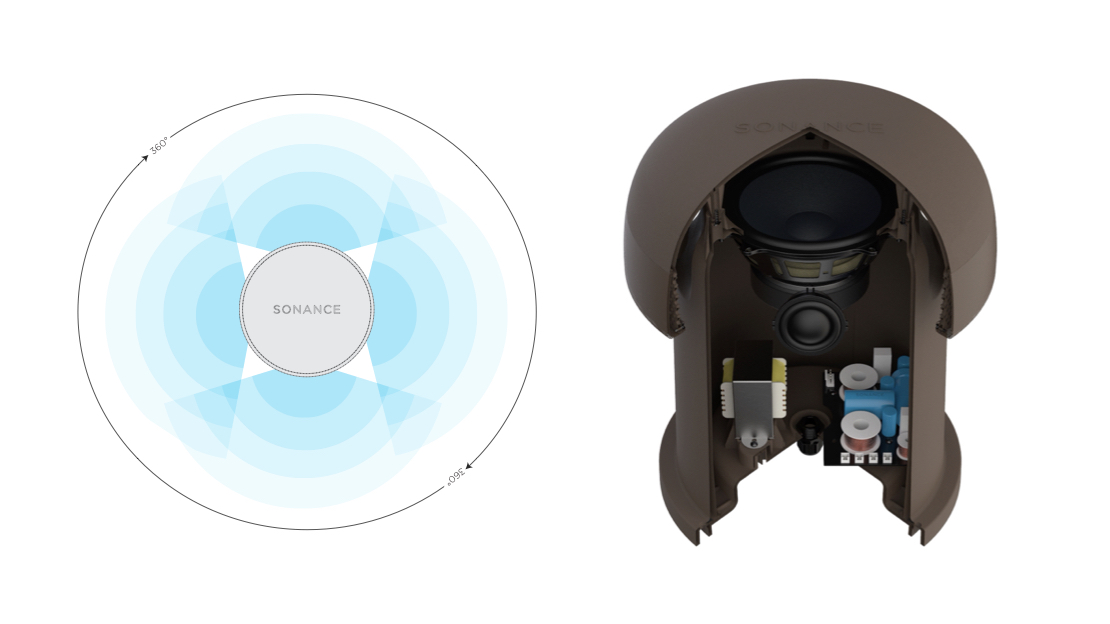

The OMNI-6T achieves impressive fidelity and output from its 4 1.25" wide-band, direct-firing drivers that do not rely on reflection. The 6.5" up-firing high-excursion woofer helps the speaker deliver full range performance. With an 80W 70V Sonance Laminated Core Transformer for flexible system configuration and output, the OMNI-6T has what it takes to deliver crisp, natural music in every direction for walkways, courtyards, gardens, and beyond, in residential or commercial spaces.
Installation

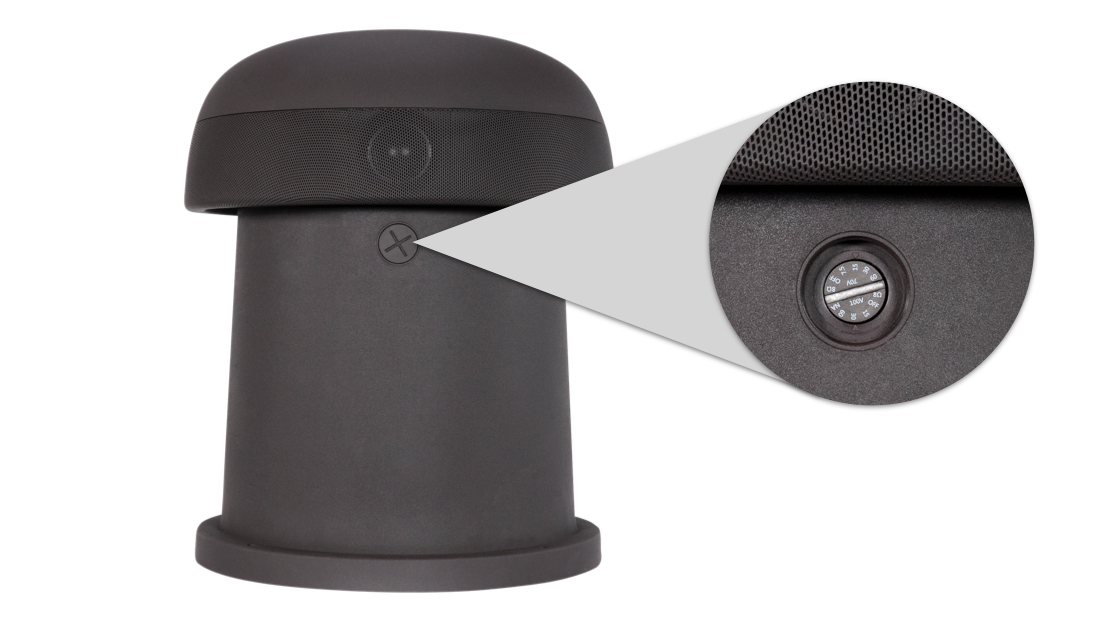

The OMNI-6T can be installed partially buried in ground or securely mounted to hardscape surfaces using its secure mounting points. The Sonance Laminated Core Transformer Tap is conveniently positioned for easy adjustability after installation.
Specifications OMNI-6T
Frequency Range (-10dB)
38Hz – 25khz
Frequency Range (-3dB)
60Hz – 20kHz
Power Capacity
120 Watts Continuous Program Power, 60 Watts Continuous Pink Noise
Nominal Sensitivity
88 dB
Nominal Coverage Angle
360 degrees horizontal, 160 degrees vertical
Directivity Factor (Q)
2.2
Directivity (DI)
3.4dB
Rated Maximum SPL
107dB @ 1 meter (3.3 feet) average, 113dB peak
Rated Impedance
8 ohms nominal, 6 ohms minimum
Transformer Taps
80W, 40W, 20W and (10W @70V)
Crossover Point
500Hz
LF Driver
6.5" (165mm) Polypropylene Cone, Santoprene Rubber Surround
Wide Band Driver
Four 1.25" (32mm) EPDM dome, Ferrofluid cooled
Input Connectors
Flying Leads
Environmental
Conforms to Mil Spec 810 for humidity, salt spray, temperature and UV, IEC 529, IP-66 waterproof rating
Included Accessories
Silicone filled wire nuts

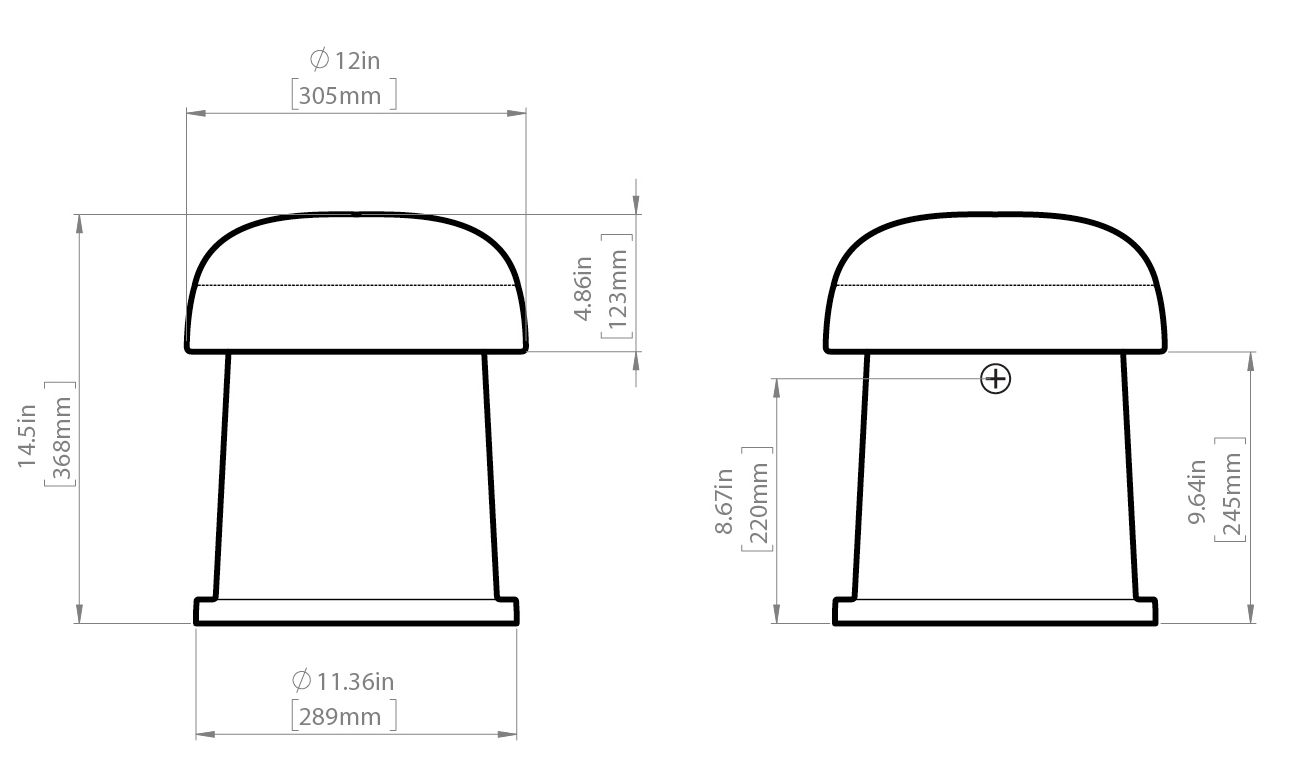

Overall Dimension HxDia
14.5”x 12" (368mm x 305mm)
Net Weight
14.60 lbs (6.62kg) each
Shipping Weight
23.25 lbs (10.55kg) each
