Sonance SYSTEM 48 - 8.1
Kontakta oss för frågor eller köp!

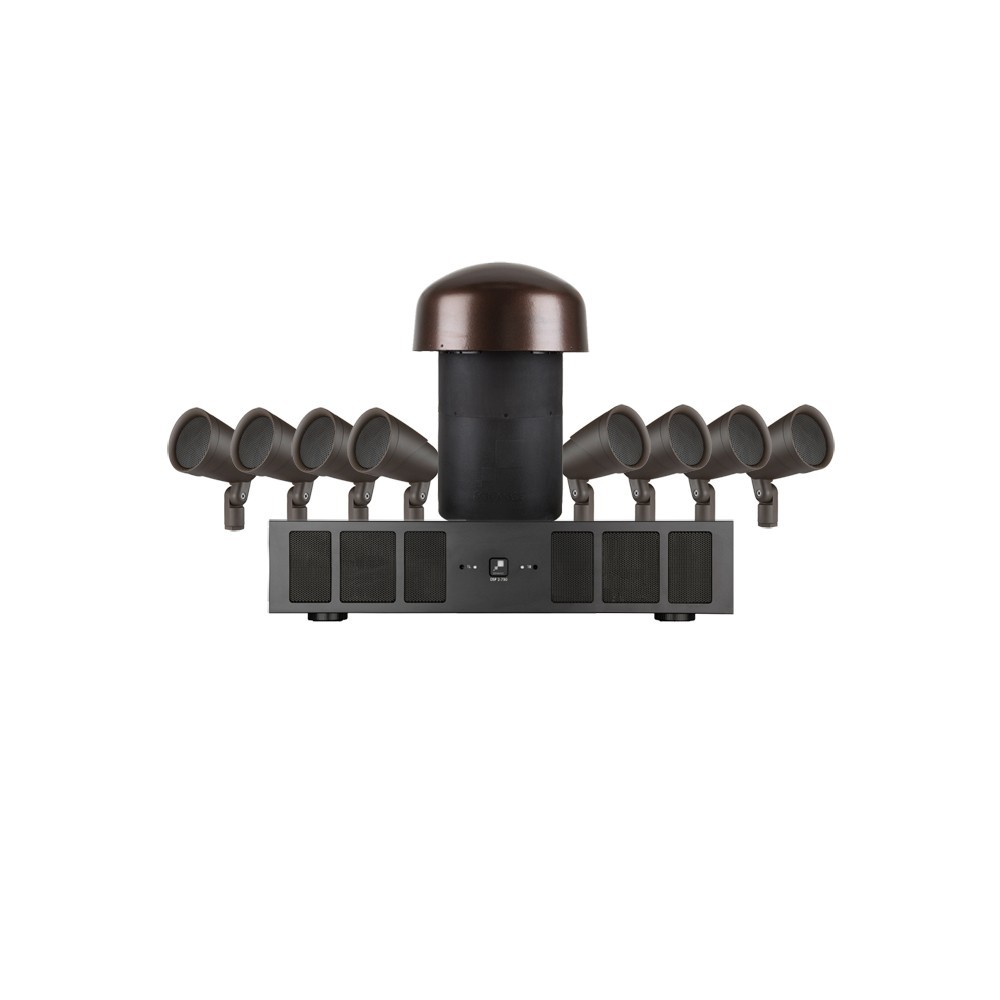

System med 8 st satellithögtalare LS48SAT + subwoofern LSV10SUB + stereoslutsteget DSP 2-750.
LS48SAT TWO-WAY LOUDSPEAKER
The LS48SAT is the second generation of the 70 Volt Sonance Landscape Series satellite loudspeaker. The SLS SAT & SUB system provides a superior landscape aesthetic enabling camouflaged speakers to evenly immerse a space with extraordinary sonic performance in any terrain.
The LS48SAT can be positioned in trees, hidden in planting beds, or along walkways. The robust professional-grade drivers and electronics coupled with our proprietary Ultra-Violet (UV) resistant composite enclosures ensure years of enjoyment. 70 Volt audio systems allow for extremely flexible and expandable landscape designs.
Features and Benefits LS48SAT
• Part of a scalable system that delivers perfectly even coverage and unequalled sonic performance throughout any sized space
• Designed to be hidden under plants and in trees
• Two-way loudspeaker for detail & clarity
• Color-molded composite construction won’t chip, peel or fade over time
• (UV) resistant composite enclosure
• 1/2” NPS/NPT male mounting threads enable various mounting options
• Robust construction designed to handle extreme conditions
• Rust-proof protective grille
• 40 Watt transformer
• 70 Volt systems allow expandable landscape designs
Specifications LS48SAT:
Tweeter: 1/2" (13mm) PEI dome
Woofer: 3 1/2" (89mm) polypropylene cone with a Santoprene™ rubber surround
Frequency Response: 80Hz - 20kHz ±3dB
Dispersion: —
Transformer Taps: Primary voltage: 70V Fixed tap (70V): 40 Watts
Enclosure Material: High Heat ABS. Non-corrosive sealed enclosure
Shipping Weight: 1.75kg each
Dimensions LS48SAT
Length: 164mm
Diameter: 104mm
LSV10SUB IN-GROUND SUBWOOFER
The LS10VSUB is the second generation of the 70 Volt Sonance Landscape Series in-ground subwoofer. The LS10VSUB is the perfect partner for the LS48SAT & LS68SAT, delivering higher quality sonic performance and higher SPL that is scalable for even the largest space.
The SLS SAT & SUB system provides a superior landscape aesthetic enabling camouflaged speakers to evenly immerse a space with extraordinary sonic performance in any terrain. The robust professional-grade drivers and electronics coupled with our proprietary Ultra-Violet (UV) resistant composite enclosures ensure years of enjoyment. 70 Volt systems allow for extremely flexible and expandable landscape designs.
Features and Benefits LSV10SUB
• Part of a scalable system that delivers perfectly even coverage and unequalled sonic performance throughout any sized space
• Below-ground subwoofer provides superior bass while seamlessly blending into the landscape environment
• Robust construction designed to handle the most extreme conditions
• Tuned port / deep, powerful, tight bass
• 10” woofer
• 300 Watt transformer
• Top-firing band-pass design
• 1/2” thick (LDPE) non-corrosive sealed enclosure
• 70 Volt systems allow expandable landscape designs
Specifications LSV10SUB:
Woofer: 10" (254mm) polypropylene cone with a Santoprene rubber surround
Frequency Response: 35Hz - 100Hz ±3dB
Transformer Taps: Primary voltage: 70V Fixed tap (70V): 300 Watts
Crossover Frequency: 100Hz
Enclosure Material: Low Density polyethylene (LDPE)
Dimensions (L x H x D): -
Woofer Enclosure Dimensions (L x Dia.): -
Woofer Enclosure Dimensions (H x Dia.): 400mm x 310mm
Canopy Dimensions (H x Dia.): 215mm x 431mm
Shipping Weight: 21kg each
Available Colors: Black enclosure, dark brown textured canopy
Sonamp DSP 2-750 Amplifier
Amazing audio in any Environment
The new line of DSP amplifiers feature SONARC (Sonance Advanced Room Correction), which offers hundreds of EQ presets designed specifically for Sonance speakers available through simple pull down menus. The presets enable effortless DSP without the need for additional hardware, software, and more importantly time. Additionally, should there be a need for further customization, SONARC provides a 10-band parametric EQ to optimize sonic performance in any space.
Do more with less
The new DSP amplifiers are engineered to be smaller yet more powerful than previous Sonamp models. The resulting power density allows for 130W or 150W in a mere 1U rack space while maintaining an industry-leading 93% energy efficiency.
Ready for the future of high-resolution audio
At the core of every DSP amplifier is a powerful 24 bit/96K DAC, capable of handling a full 4608 Kbps of audio data. Most amplifiers have processing limitations that constrain the audio output, and limit the maximum amount of pass through information to 1411 Kbps which compromises the quality of the listening experience.The new line of Sonamp DSP amplifiers enables listeners to enjoy the full clarity and output of whatever audio passes through, from MP3 to full High Resolution Audio. Sonamp DSP amplifiers prepare your audio system for what’s next.
Specifications DSP 2-750:
Number of Channels: 2 (1 stereo pair)
Output Power - 8 ohms: 500 Watts RMS per channel (all channels driven)
Output Power - 4 ohms: 750 Watts RMS per channel (all channels driven)
Output Power - 70 Volts: 750 Watts RMS per channel (all channels driven)
Output Power - 8 ohms (Bridged): 2000 Watts
Frequency Response: 5Hz - 50kHz
Operating Voltage: 100 - 120V@60Hz, 220 - 240V@50Hz
Rack Space Requirement: 2U
Dimensions With Feet (WxHxD): 438mm x 98mm x 437mm
Dimensions No Feet (WxHxD): 482mm x 88mm x 437mm
Shipping Weight: 10.6kg
Modellbeskrivning | |
---|---|
Modell
|
SYSTEM 48 - 8.1 |
Aktiv/passiv modell
|
Passiv |
Trådlös
|
Nej |
Nätverk
|
Nej |
Allvädershögtalare
|
Ja |
