Diskret och mycket kompakt, flexibel och elegant laserprojektor med hög ljusstyrka, som är perfekt för företags-, utbildnings- och golfsimulatorapplikationer.
Small and light 5,000 lumen* laser projector

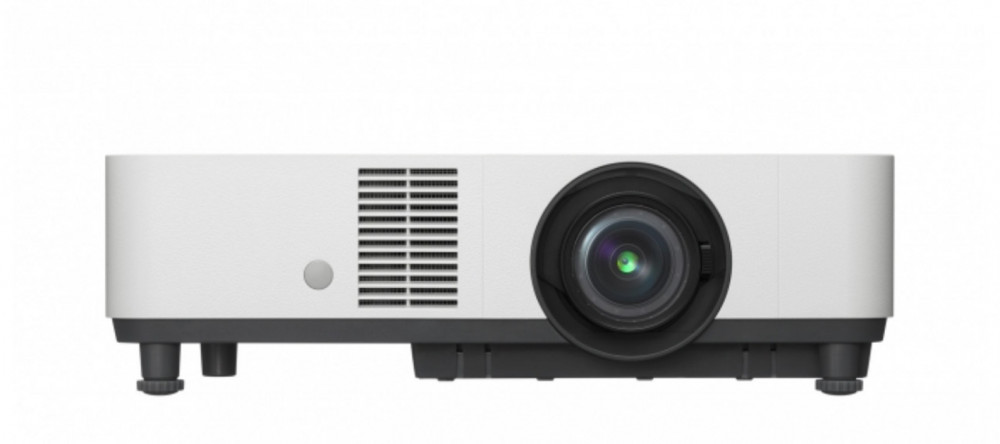

Beautifully slim, light and stylish, the VPL-PHZ60/50 laser projector combines outstanding picture performance with impressive 6,000 lumen* image brightness and dependable reliability. With discreet blend-in styling, minimal maintenance needs and flexible installation options, it’s the natural partner for today’s integrated AV environments.
*VPL-PHZ60 6,000 lm (6,500 lm center) / VPL-PHZ50 5,000 lm (5,400 lm center)
Vivid, crisp images to impress every audience
Experience wonderfully rich, finely-detailed images in conference rooms, larger classrooms and visual simulation environments. Colours and gradients are reproduced accurately, whilst the exclusive Reality Creation feature optimises every pixel to enhance on-screen content, without adding digital picture noise. Bright View delivers easy-to-see images, even in bright environments.
Better, brighter pictures for longer
Now smarter than ever, Intelligent Settings fine-tunes picture parameters for beautiful images and consistently dependable performance in any environment, from teaching spaces to public venues. Through an optimisation algorithm, laser output and cooling are automatically adjusted according to the frequency of use – prolonging the working life of the projector.
More flexibility for fuss-free installation
Enjoy flexible installation options with a generous +55% vertical lens shift range, making it easy to achieve perfectly-proportioned pictures without long pole mounts or keystone correction when the projector’s ceiling mounted. We’ve also widened the throw ratio range, simplifying replacement of a previously installed projector without the hassle of re-positioning an existing ceiling mount.
Native 4K 30P input support
Support for 4K 30P input signals makes life simpler when you’re using the VPL-PHZ60/50 in multi-screen set-ups with other devices like flat panel sub-screens: just split the same 4K signal to drive all your displays with no conversion needed. There’s also a high-performance image scaler that effortlessly converts 4K input signals to project in Full HD while maintaining pristine picture quality.
More picture power in every environment
Conference rooms
Impress your audience with large, vibrant images and sleek, contemporary styling.
Classrooms
Engage every student in larger teaching spaces with crisp, high-brightness pictures.
Golf simulation
Reality Creation brings even more lifelike detail, colour and texture to each blade of grass.
SPECIFICATIONS
Display System
Display System: 3LCD system
Display Device
Size of Effective Display Area: 0.64” (16.3 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
Number of Pixels: 6,912,000 (1920 x 1200 x 3) pixels
Projection Lens
Focus: Manual
Zoom: Manual (Approx. x 1.6)
Lens shift: Manual, Vertical -35% to +55%, Horizontal: +/-15%
Throw Ratio: 1.23 : 1 to 1.97 : 1
Light Source
Light Source: Laser diode
Screen Size
Screen Size: 40’’ to 300’’ (1.02 m to 7.62 m) (measured diagonally)
Light Output *1
Mode: Standard: 5,000lm *2 / 5,400lm (Center)*3
Mode: Middle: 4,000lm
Mode: Low: -
Color Light Output*1
Mode: Standard: 5,000lm
Mode: Middle: 4,000lm
Mode: Low: -
Contrast Ratio (full white / full black) *1
Contrast Ratio (full white / full black) *1: ∞:1
Displayable Scanning Frequency
Horizontal: 15 kHz to 92 kHz
Vertical: 24 Hz to 92 Hz
Keystone Correction (Max.)
Keystone Correction (Max.): Horizontal: +/-30 degrees, Vertical: +/-30 degrees
Accepted Signal Resolution
Computer Signal Input: Maximum signal resolution: 1920 x 1200 (4K/30p, 3840 x 2160 acceptable)
Video Signal Input: NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p 4k/30p, 4k/25p, 4k/24p (4k means 3840)
INPUT / OUTPUT
INPUT A: RGB / Y PB PR input connector: Mini D-sub 15 pin (female)
Audio input connector: Stereo mini jack
INPUT B: HDMI input connector: HDMI 19-pin, Digital RGB/Y PB PR, HDCP support
Audio input connector: HDMI audio support
INPUT C: HDMI input connector: HDMI 19-pin, Digital RGB/Y PB PR, HDCP support
Audio input connector: HDMI audio support
INPUT D: HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN(100BASE-TX), RS-232C)
VIDEO IN: Video input connector: Phono jack (Composite)
OUTPUT: Audio output connector: Stereo mini jack
REMOTE: D-sub 9-pin (male) / RS232C
LAN: RJ45, 10BASE-T / 100BASE-TX
USB: TYPE-A x 1 (for F/W update), TYPEA for Power supply
Speaker
Speaker: 16 W
OSD Languages
OSD Languages: 27-language (English, French, German, Italian, Spanish, Portuguese, Japanese, Chinese, Korean, Russian, Dutch, Norwegian, Swedish, Thai, Arabic ,Turkish, Polish, Vietnamese, Farsi, Finnish, Indonesian, Hungary, Gleek, Czech, Slovakia, Romania)
Acoustic noise (Mode: Standard / Middle)*1
Acoustic Noise (Mode: Standard / Middle)*1: 35 dB / 32 dB
Operating Temperature / Operating Humidity
Operating Temperature / Operating Humidity: 0°C to 40°C (32°F to 109°F) / 20% to 80% (no condensation)
Storage Temperature / Storage Humidity
Storage Temperature / Storage Humidity: -10°C to +60°C (14°F to +140°F) / 20% to 80% (no condensation)
Power Requirements
Power Requirements: AC 100 V to 240 V, 4.4 A to 1.9 A, 50 Hz / 60 Hz
Power Consumption
AC 100 V to 120 V: 440 W
AC 220 V to 240 V: 418 W
Power Consumption (Standby Mode)
AC 100 V to 120 V: 0.5 W (when “Standby mode” is set to “Low”)
AC 220 V to 240 V: 0.5 W (when “Standby mode” is set to “Low”)
Power Consumption (Networked Standby Mode)
AC 100 V to 120 V: 1 W (LAN), 16 W (ALL Terminals and Networks Connected, when “Standby Mode” is set to “Standard”)
AC 220 V to 240 V: 1 W (LAN), 16 W (ALL Terminals and Networks Connected, when “Standby Mode” is set to “Standard”)
Standby Mode / Networked Standby Mode Activated
Standby Mode / Networked Standby Mode Activated: Approx. 2 Minutes
Dimensions (W x H x D) (without dust filter, protrusions)
Dimensions (W x H x D) (without dust filter, protrusions): Approx. 422 x 100 x 333 mm (16 5/8 x 3 15/16 x 13 1/8 inches)
Dimensions (W x H x D)
Dimensions (W x H x D): Approx. 422 x 129 x 338 mm (16 5/8 x 5 3/32 x 13 5/16 inches)
Mass
Mass: Approx. 6.6kg (15 lb)
Supplied Accessories
Supplied Accessories: RM-PJ8 Remote Commander
Notes
*1The figures are approximate. They vary depending on the environment or how the projector is used.
*2The value is in accordance with ISO 21118, and may differ depending on the actual unit. Brightness and contrast vary depending on use conditions and environments.
*3The value is light output measured at center area of screen in Standard mode, and average of all products shipped.
