8-channel, ultra-high power amplifier
StormAudio - Exclusive partner in the introduction of Dirac Live Active Room Treatment. Läs mer (extern länk)
Built upon StormAudio’s robust and high-performance MK2 generation, the PA MK3 range shines with its refined and classy appearance.
The result of a close collaboration with Danish company Pascal Audio, StormAudio’s philosophy of reliable, controllable and impressive-sounding products is reflected in the Class D technology used in our amplifiers.
With its UMAC™ Class D technology, the PA MK3 range demonstrates audiophile performance with high-efficiency, high-dynamic range and very low distortion. With four individual UREC™ technology-based power supplies, each PA MK3 offers up to 3kW of power capacity with instantaneous response, adapting in real time to the demanding dynamics of cinema soundtrack reproduction.
If high power is required in your installation, you will find the solution in the PA 8 Ultra MK3. This model, offering up to 800W in Bridge Tied Load mode, is capable of driving any demanding loudspeaker or subwoofer found in a modern residential cinema.
When partnered with our ISP products, all PA MK3 status information becomes accessible to the installer within the ISP WebUI interface thanks to StormMonitoring technology, allowing for total visibility of the installation, whether locally or remotely.
All in all, the PA MK3 range delivers a without-compromise offering to power any installation.
The PA 8 Ultra MK3 includes:

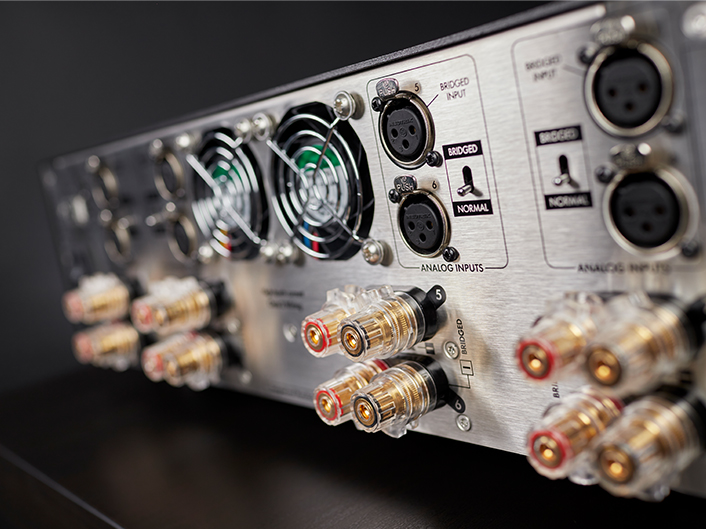

OUTPUTS
3-way binding post, 4mm wire
CONTROL
Ethernet (Monitoring)
Trigger IN
RACK SIZE
3RU
INPUTS
8ch XLR
CONFIGURATION
8ch Single Ended / 4ch Bridged Tied Load
Class D
SPECIFICATIONS
SNR (p-rated) : 115dB
THD+N (1W) : <0.005%
8ch SE, 26 dB gain
Power, all channels driven, 0,1% THD+N
200W RMS @ 8 ohm
400W RMS @ 4 ohm
4ch BTL, 32 dB gain
Power, all channels driven, 0,1% THD+N
800W RMS @ 8 ohm
800W RMS @ 4 ohm
