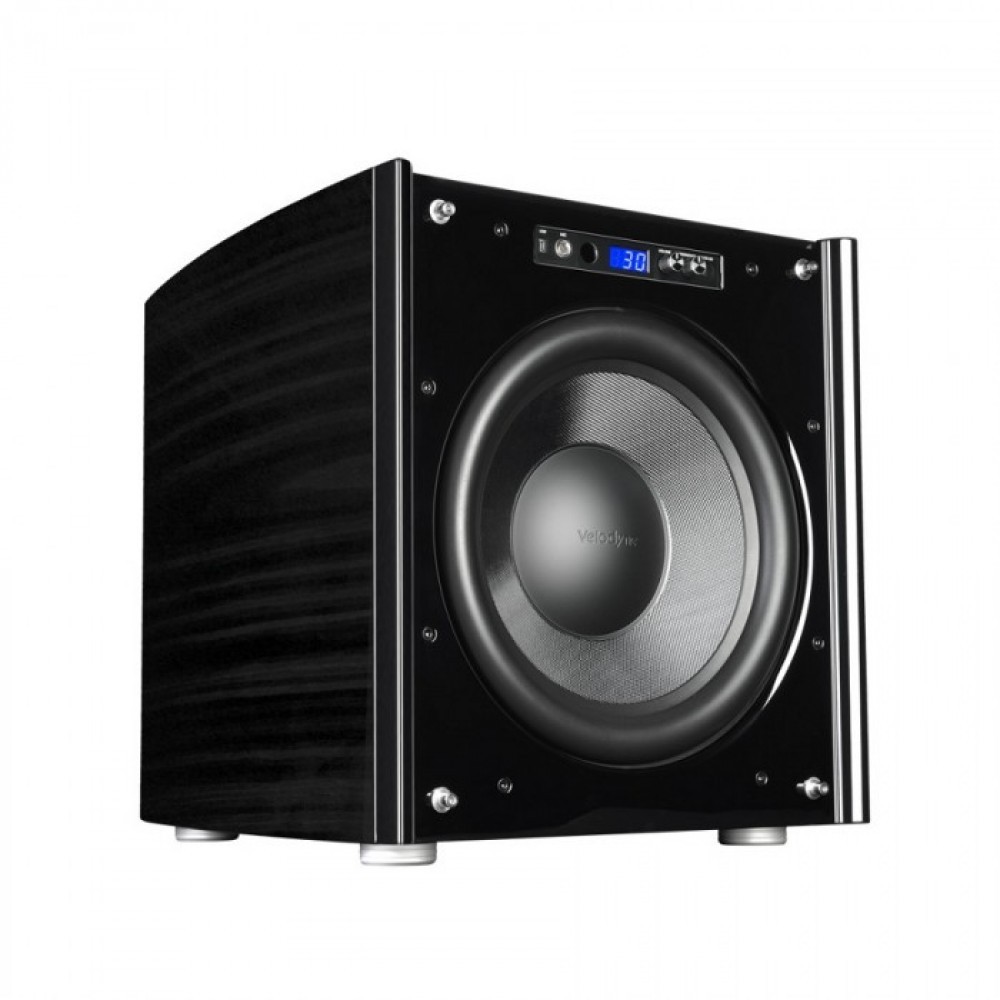

Velodyne DD-15 Plus
77 990 kr
Velodyne Acoustics Digital Drive Plus
Highest precision at lowest frequencies
Cutting-edge technology for real gourmets
The Digital Drive Plus series redefines the term subwoofer. Digitally controlled drivers with impressive performance, almost endless power and the latest calibration algorithms with extensive adjustment options make these subwoofers precision tools of a special class.
State-of-the-art technologies coupled with decades of experience in building subwoofers
make the Digital Drive Plus Series the essence of everything the Velodyne Acoustics brand is all about. Digitally controlled high-end drivers, extensive customization options and infinite power lead to incorruptible precision down to the lowest frequency basement
The Features
• High-performance chassis with six-way, hand-wound voice coils.
• Digital diaphragm control with 16,000 samples per second
• High-precision automatic calibration with software connection for fine tuning
• Powerful amplifiers with 1,250 watts RMS and 3,000 watts impulse power
Digital Drive 15 Plus
Driver 15″ forward firing
Amplifier Class D 3000 watts dynamic, 1250 watts RMS power
Frequency Response: Overall 9.0 – 300 Hz
Frequency Response: (± 3 dB) 14.6 – 120 Hz
THD < 0.5 % (typical)
High Pass Crossover 80 or 100 Hz at 6 dB/octave
Low Pass Crossover 40 Hz to 199 Hz (variable in 1 Hz increments) selectable slope. Default: 80 Hz @ 24 dB/Octave
Phase 0 to 180 degrees (variable in 15 degree increments)
Polarity Adjustable (+/-)
Magnet Structure 39.7 lbs.
Voice Coil Six-layer, 75 mm
Cone Fiberglass Rohacell Laminate
Input LFE (Mono) Line level (RCA), Nominal Impedance 47K, Balanced (XLR), Nominal Impedance 10K
Input L&R Line level (RCA & XLR)
Input Microphone Balanced (Mini-XLR, cable included)
Input Speaker Level (L&R) Bare wire, banana plugs, or spade lugs
Output Thru (L&R) Line level (RCA & XLR)
Output (L&R), High-Pass (L&R) Line level (RCA & XLR)
Included Accessories Full feature remote control, DD+ accessory kit and video cable
Finishes Black gloss ebony or Piano Black
Dimensions (H/W/D) (includes feet and connectors) 51 x 46 x 57 cm
Shipping Weight (approx) 54,4 kg
Färg: Svart
Modellbeskrivning | |
---|---|
Modell
|
DD-15 Plus |
Typ av produkt
|
Subwoofer |
Aktiv/passiv modell
|
Aktiv |
Nätverk
|
Nej |
Tekniska specifikationer | |
Frekvensomfång
|
14.6 - 120 Hz (+/-3 dB) Hz |
Baselement
|
15” |
Riktning för basport
|
Framåt |
Delningsfrekvens/delningsfilter
|
Ställbart delningsfilter 40-199Hz i 1 Hz steg |
Effekt, slutsteg
|
3000 watt Dynamic, 1250 watt RMS |
Faskontroll
|
0, 180 grader |
Energi, strömförsörjning och miljö | |
Auto on/off
|
Ja |
Övrigt | |
Fjärrkontroll
|
Ja |
Mått och vikt | |
Bredd
|
460 mm |
Höjd
|
510 mm |
Djup
|
570 mm |
Vikt
|
51 kg |
