18Gbps 4K HDR HDBaseT Extender with True ARC and Audio Breakout
Part of the latest generation of WyreStorm 4K extenders for the latest generation of 4K HDR content, the EX-35-ARC features dynamic compression for delivery of 4K/60 4:4:4 and HDR content up to 17.8Gbps over standard HDBaseT, both visually losslessly and without latency.
With support for HDR-10 and HLG up to 60Hz, and Dolby Vision™ at 30Hz, the EX-35-H2-ARC offers True Audio Return Channel (ARC), enabling an ARC signal from a Smart TV HDMI input to be passed to an AVR HDMI output.
HDMI 2.0 MAXED-OUT
Knowing the speed at which technology moves, at WyreStorm we’re always looking ahead. That’s why we’ve included our VLC chipset (Visually Lossless Compression) in this extender meaning not only ARC is supported but also the next shift in content technology: 60Hz HDR and 4:4:4 60Hz.
ON-DEMAND AUDIO
With on-demand content forming the new way of watching TV, free the audio from within a SmartTV with the WyreStorm EX-35-H2-ARC HDBaseT™ extender, supporting both True ARC (via HDMI) or optical audio return.
HIGH FRAME RATE HDR
HDR Content has recently enjoyed an up-shift in refresh rates after starting its life at 24Hz on UHD Blu-Ray discs. High frame-rate HDR is now available at 60Hz on certain discs and via games consoles like the Xbox One X; the EX-35-H2-ARC is ready for this, supporting both HDR-10, HLG and Dolby Vision* (*Dolby Vision at up to 30Hz).
AUDIO DE-EMBED
Fully-featured audio performance doesn’t stop at the ability to handle ARC, the transmitter of the EX-35-H2-ARC offers the ability to extract 2ch PCM audio from the source via the 3-pin phoenix port for connection to an audio system.
Technical Specifications
AUDIO & VIDEO
Inputs
TRANSMITTER
1x HDMI: 19-pin type A
RECEIVER
1x HDBaseT: 8-pin RJ-45 Female
1x S/PDIF: TOSLINK (Digital Optical)
Outputs
TRANSMITTER
1x HDBT: 8-pin RJ-45 Female
1x S/PDIF: TOSLINK (Digital Optical)
1x Source Audio: 3-pin Phoenix
RECEIVER
1x HDMI 19-pin type A
Output Video Encoding
HDBaseT™ Class B
Encoding Data Rate
9.2Gbps
End to End Latency
10μs (microseconds)
Audio Formats
2ch Analog/PCM | Multichannel: LPCM up to DTS-X and Dolby Atmos
Video Resolutions (max)
1920x1080p @60Hz 16bit
3840x2160p @24Hz 10bit 4:2:0 HDR
3840x2160p @30Hz 8bit 4:4:4
4096x2160p @60Hz 8bit 4:4:4
Supported Standards
DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100
Maximum Pixel Clock
HDMI: 600MHz | HDBaseT: 297MHz
COMMUNICATION & CONTROL
HDMI
HDMI | HDCP 2.2 | EDID | DVI/D supported with adapter (not included)
HDBaseT
HDMI | HDCP 2.2 | EDID | ARC | 2-way PoH | Bidirectional IR and RS-232
CEC
CEC Pass-through – Requires CEC compatibility between source and display
IR
1x IR RX: 3.5mm (1/8in) TRS Stereo | 1x IR TX: 3.5mm (1/8in) TS Mono (Transmitter and Receiver)
RS-232
1x RS-232: 3-pin Phoenix (Transmitter and Receiver)
Audio Return Channel (ARC)
Supports true ARC from display to the transmitter over HDBaseT
POWER
Power Supply
12V DC 3A
PoH
48V 15.4W | 2-way
Max Power Consumption
8.88W
Additional Features
• HDCP 2.2 compliant, with automatic variable compression supporting full bandwidth HDMI content up to 17.8Gbps

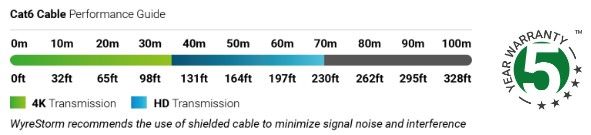

• Class B HDBaseT extends 4K UHD 4:4:4 content to 35m/115ft with IR & RS-232 pass-through
• Toslink input & output allows non-ARC audio to be sent from RX-TX via selection switch
• Analog stereo audio breakout of source audio on transmitter
• Advanced re-clocking chipset increases compatibility with new 4K UHD source devices
• 2-way PoH (Power over HDBaseT) enables either transmitter or receiver to be remotely powered by the other unit
• Slimline 21mm chassis for easier, more convenient installation behind displays
• Switchable RS-232 function mode on transmitter and receiver for firmware update
Note: Serial control via RS-232 only supported when connected to a compatible HDBaseT transmission device with routable RS-232
• Threaded bushings allow use of both standard and locking 18v DC power plugs
• Visual LED indication for power supply to units, signal status to show established display connection, HDCP presence in signal and HDBaseT link between devices
• Automatically adjusts equalization and amplification of signal for easy installation
In the Box
1x EX-35-H2-ARC Transmitter
1x EX-35-H2-ARC Receiver
1x 12V DC 3A Power Supply (US/EU/UK)
3x 3-pin Screw Down Male Phoenix Connectors
1x IR Emitter
1x IR Receiver
4x Mounting Brackets (2x for TX | 2x for RX)
1x Quickstart Guide
