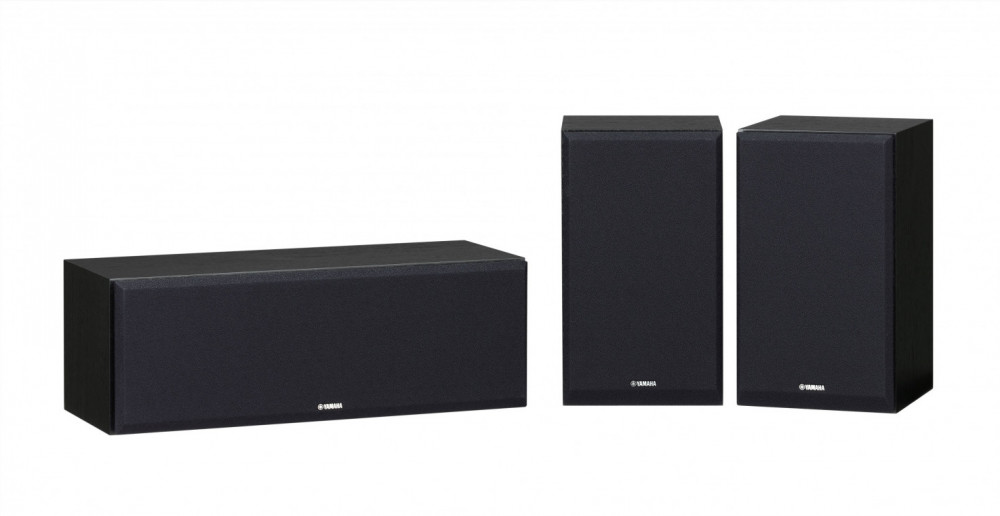

Yamaha NS-P350

Högtalarpaket bestående av en center och två surroundhögtalare, med detaljrikt ljud. Perfekt kombination med NS-F350. Högtalaren är utrustad med en helt ny diskant och ett PMD bas element. Njut av varje bit av din ljuddata i 5-kanaler.

• New 3 cm (1”) aluminium dome tweeter generates 45 kHz (–10 dB) high frequency reproduction that is truly outstanding
• The 13 cm (5”) woofer features PMD cones that have a proven track record, produce massive, clear low frequencies
• Unique waveguide horn that enhances the sound field sensation of theatre sound
• Wall mountable

Yamaha’s Sound Concept: The Ability to Fully Play All the Latest AV Sources

If the sound quality is not good enough in 2-channel playback, there is no chance of properly reproducing the source in surround sound. This is the idea that led to the development of these surround back and centre speakers for a 5-channel system. Both speakers use an all-new tweeter and PMD cone woofer combination. They have large cabinets to handle audio-rich data, ensuring that expansive and seamless theatre sound will fill your room.

Expansive, Glistening Sound. A New 3 cm (1”) Aluminium Dome Tweeter that Reproduces 45 kHz (–10 dB) High Frequencies

As a next-generation unit, the NS-PC350 and NS-PB350 employ a new structure that puts an aluminium dome inside the voice coil. The aluminium’s Black Anodised processing suppresses the aluminium-specific character of the sound, providing expansive and accurate reproduction of the texture and nuance of the high frequencies. With a new diffuser shape and a new voice coil using CCAW (copper-coated aluminium wire) it achieves 45 kHz (–10 dB) reproduction with extended high frequency range while maintaining the amount of information and energy in the audible band.

Featuring a Unique Waveguide Horn that Controls Directivity

Based on the idea of controlling spatial representation from the speaker, the waveguide horn directs the sound to reflect from walls and other surfaces. Thanks to the directivity of a left-right directional range of 135 degrees and a vertical range of 120 degrees optimised for home theatre use, it precisely recreates the sound field while minimising the impact of the room.

Supple and Strong. 13 cm (5”) Woofer Utilises a PMD Cone with a Proven Track Record in Europe and Japan

Incorporating 30% high quality white mica, the 13 cm (5”) woofer utilises a lightweight, high rigidity PMD (Polymer-injected Mica Diaphragm) cone that achieves ideal internal loss and high elasticity characteristics. The new design put both the voice coil and spider under the knife, achieving massive, expansive low tones.

Kan monteras på vägg

The NS-PC350 and NS-PB350 have keyholes on the back so they can be quickly and securely wall mounted.

Specifications NS-P350

Typ

2-way acoustic suspension (NS-PC350) / 2-way bass-reflex (NS-PB350)

Centerhögtalare

Baselement Dual 13cm (5”) cone
Diskant 3cm (1”) aluminium dome
Frekvensrespons 58 Hz–45 kHz
Nominell ingångseffekt 100 W
Maximal ingångseffekt 200 W
Känslighet 90 dB/2.83 V/1 m
Delningsfrekvens 2.8 kHz
Impedans 6 ohms
Storlek (B x H x D) 500 x 174 x 202 mm; 19-5/8” x 6-7/8” x 8”
Vikt 6.3 kg; 13.9 lbs./unit

Surround Speaker

Baselement 13cm (5”) cone
Diskant 3cm (1”) aluminium dome
Frekvensrespons 57 Hz–45 kHz
Nominell ingångseffekt 50 W
Maximal ingångseffekt 150 W
Känslighet 88 dB/2.83 V/1 m
Delningsfrekvens 3 kHz
Impedans 6 ohms
Storlek (B x H x D) 186 x 320 x 208 mm; 7-3/8” x 12-5/8” x 8-1/4”
Vikt 4.8 kg; 10.9 lbs./unit
