Binary 900 4K MOIP Receiver + Audio Downmix

Advanced Audio Capabilities

Dolby and DTS Audio Downmixing

Our Binary™ 900 Series 4K Media over IP Receiver with Downmixing eliminates the need to choose multi-channel audio or force downmixing, providing immersive multi-channel audio in one area while sharing throughout the space in 2-channel audio format.

HDMI Audio API Control

The Binary™ 900 Series 4K Media over IP Receiver allows audio downmixing of multi-channel to 2-channel and multi-channel to HDMI output, enabling the HDMI downmix to be controlled by an API with three options: bypass, 2-channel mode, and auto mode for complete audio flexibility.

Supported Audio

Binary™ 900 Series 4K Media over IP Transmitters and Receivers support Dolby Digital, Dolby Digital+, Dolby TrueHD, DTS, DTS-HD, and DTS-HD Master downmixing for ultimate flexibility in video and audio integration.

**The SPDIF input on the Receiver and output on the Transmitter is available for future use only.

Audio Lip Sync Adjustment

The Binary™ 900 Series 4K Media over IP Transmitters and Receivers with Downmixing support lip-sync adjusting for the analog output from 0ms to 250ms for perfect audio/video synchronization.

MoIP Backward Compatibility

The B-900-MOIP-4K-RX-2AC receiver and B-900-MOIP-4K-TX-2AC transmitter are designed to coexist with B-900-MOIP-4K-RX receivers and B-900-MOIP-4K-TX transmitters, letting you downmix when needed. Plus, decoders at each endpoint provide additional system flexibility. Downmix audio from each source into a multizone audio system, expand audio from a MoIP receiver to a secondary listening zone with only 2-channel audio, or both!

Visually Lossless 4K Video

MoIP encodes video up to 4K HDR using visually-lossless, variable bit-rate compression technology. The system is HDR and HDCP 2.2 compatible, resulting in an ultra-stable video stream, perfect audio/video sync and ultra-low latency (one frame).

Mixed 4K & 1080p Sources and Displays

Traditional matrix switchers force you to downgrade all source content to the lowest video quality that will work on all displays. Whether your customer is moving to a full, 4K system now or upgrading from 1080p to 4K over time, MoIP provides the custom solution that fits their budget, without compromising quality.Traditional matrix switchers force you to downgrade all source content to the lowest video quality that will work on all displays. Whether your customer is moving to a full, 4K system now or upgrading from 1080p to 4K over time, MoIP provides the custom solution that fits their budget, without compromising quality.

Impressive Video Walls

Group 4, 9, or even 16 displays together to create amazing video walls. Configuration takes only a minute, without the need to program each device. The result is a new “virtual” receiver, so you simply select the desired source, making control integration a breeze.

Limitless Control Options

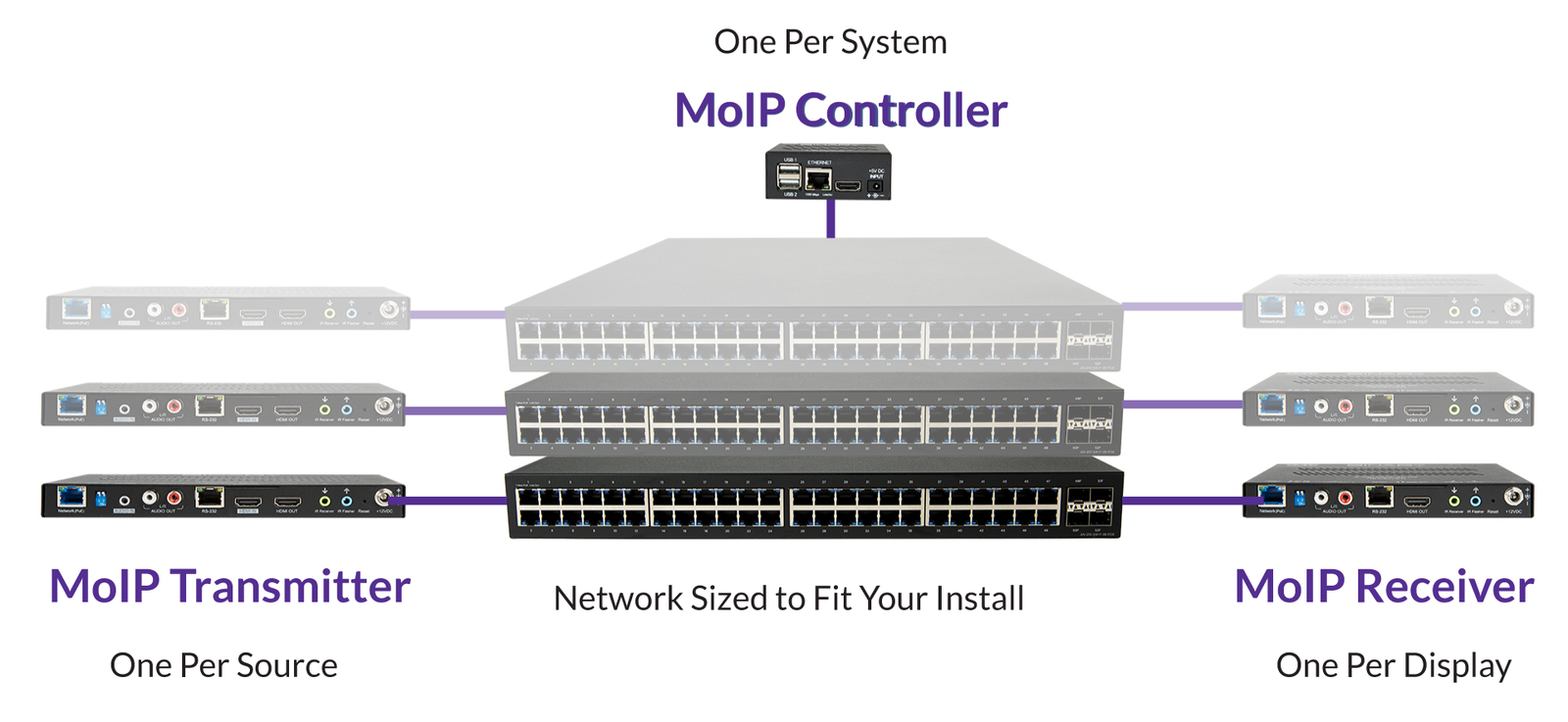

Switching of inputs (TX) to outputs (RX) is done through IP commands from a control system sent to the MoIP controller. Out of the box, the system supports three methods for controlling sources and displays: IR, RS-232 and CEC. IR or RS-232 commands can be issued via IP and generated at each endpoint. If desired, IR and RS-232 virtual routing can also be configured from any TX to any or all RX(s). Desired methods for issuing commands are selectable via the local UI. Lastly, for more basic installs where display on and standby is all that is needed, MoIP also supports CEC.

Control System Integration

Our engineers have written drivers for the industry’s leading control systems, including Control4, Crestron, ELAN, URC and more – so controlling the system has a familiar feel. Advanced features like IR routing and RS-232 over IP deliver even more flexibility and customization – and we’ve even provided the MoIP controller’s API to create your own drivers if needed.

Perfect for Commercial Applications

From small offices to large-scale bars and restaurants, Binary MoIP allows you to distribute multiple sources to any number of screens, or even create stunning video walls. Binary is also compatible with applications like DTVGameControl, which helps your clients control and manage their devices.

The Binary MoIP Difference

The Fastest, Simplest Solution

Gone are the days of head-scratching system design, next-level network know-how and confusing configurations. Binary MoIP removes all that complexity, requiring only a Layer 2 PoE switch (210 and 310 Series), so you don’t need a network guru to install it. OvrC-enablement, simple setup and intuitive user-interfaces enable you to go from power-on to picture in 5 minutes or less.

Flexible & Scalable

The Binary MoIP solution allows you to fit, scale, and upgrade the solution to match your client’s specific needs. Need a 6x8 for one job and a 7x13 for another one? No problem. What about adding a video wall? Done. Instead of replacing the entire system, you can simply purchase new transmitters or receivers when adding sources or displays.

Ultra-Reliable HDR

With Binary MoIP, legacy EMI interference and HDCP/EDID issues are eliminated. Each source is encoded, visually lossless, at the highest quality possible (ex. 4K HDR). Then at each display, the signal is decoded from the network and scaled to the desired resolution (ex. 1080p or 4K HDR). Built-in scaling in the RX means that mixed 1080p/4K systems are no longer a problem, plus pass-through of all audio formats like Dolby Atmos and DTS:X are fully supported.

The Power of OvrC

Binary MoIP delivers something no other media product can – award-winning remote management. OvrC quickens initial setup by auto-discovering the controller, plus it provides unparalleled troubleshooting tools like real-time video screenshots.

Standalone App

Thanks to our standalone app that’s embedded into the controller firmware, your client’s MoIP system can be operated outside a traditional control system. Follow easy installation steps to give users access to switching of sources, displays, turn off displays, and save scenes (ex: “Game Night”) for easy recall.


Specs B-900-MOIP-4K-RX-2AC

Sold As
Each

Included Accessories
Mounting ears, Mounting ear screws, Rubber feet

Transmitter Video Resolution
Up to 4K HDR@30Hz 4:2:2 | 4K HDR@30Hz 10 bit | 4K UHD@30Hz 4:4:4 8bit
Plus Full 1080p HD and lower resolution including interlaced video formats

Receiver Video Resolution
HDR Content when available 4K HDR@30Hz 10 bit
Integrated scaler to support 4K|HDCP 2.2 on 1080p|HDCP 1.4 displays

Video Features
Integrated Video Scaler: Yes (4K, 1080p)
Interlaced Video Support: Yes
HDR Support: HDR 20/24Hz (8bit)
Video Wall Support: Yes, 2x2, 3x3 and 4x4
Video Compression: Visually Lossless
Max. HDMI Bandwidth: 8.91Gbps
Max. HDMI Pixel Clock: 2

HDCP Compliance
Yes

HDMI Compliance
Yes

HDMI Connections
IN: N/A
OUT: 1 x 19-pin Type A Female

Chroma Subsampling
4:4:4

Color Depth
8, 10, 12bit

Audio Features
Audio Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Audio Bit Depth: up to 24-bit

Supported Audio Formats
2CH PCM, LPCM 2.0, LPCM 5.1, LPCM 7.1, Dolby Digital, Dolby True HD, Dolby Digital Plus, DTS, DTS-HD Master Audio, DTS NeoX, Dolby Atmos, DTS:X

Audio Inputs / Outputs
Audio In: NA
Stereo Breakout/Audio Out: 1 x L/R RCA Audio
Analog Audio In: No
Analog Audio Out: Yes
SPDIF input: For future use only

Control Features
Control Features – Add RS-232 via IP or virtual routing, Modify IR via 2-way routing or IP, Add Standalone App embedded into controller.

IR Signal Frequency
20-60 kHz

IR Inputs
1 x 3.5mm Stereo (blue), 12V

IR Outputs
1 x 3.5mm Stereo (green)

DipSwitch 1 Controls
IR RCVR PWR OFF/ON

DipSwitch 2 Controls
Serial/RS-232 DTE/DCE

RS232 Control Desc.
RS-232 over IP

RS-232 Ports
1 x RJ-45 (EIA-561)

CEC
Over IP

Networking Features
Required Managed Switch: Layer 2 Managed w/ IMGP Snooping
Req. Port Throughput: 1Gbps
Max. Distance from Switch: 100m (328 ft)
Compatible Category Cable: CAT 5E/6/6A/7

Bit Rate
150-300 Mbps (Avg) 850 Mbps (Max)

Ethernet Ports
1 x RJ45 (T568B) LAN + PoE

Latency
1 frame (16ms - 60Hz, 33ms - 30Hz)

Ethernet Pass Through 10/100Mbps
10/100/1000 Mbps

IP Address
Assigned by controller

System Configuration
Supports single switch deployments: Yes
Supports multiple switch deployments: Yes (multiple gigabit uplink required)
On-screen Device Identification: Yes
Auto Device Discover: Yes

Operating Humidity
20-90% RH (no condensation)

Operating Temperature
32-104°F

Storage Temperature
-4-140°F

Dimensions (W x H x D)
w/o rack ears: 7.24" x 0.83" x 6.14"

Rack Spacing
1U

Power Consumption
12VDC 2A (optional accessory)

PoE Consumption
7.5 Watts (Max)

Certifications
CE, FCC, RoHS
