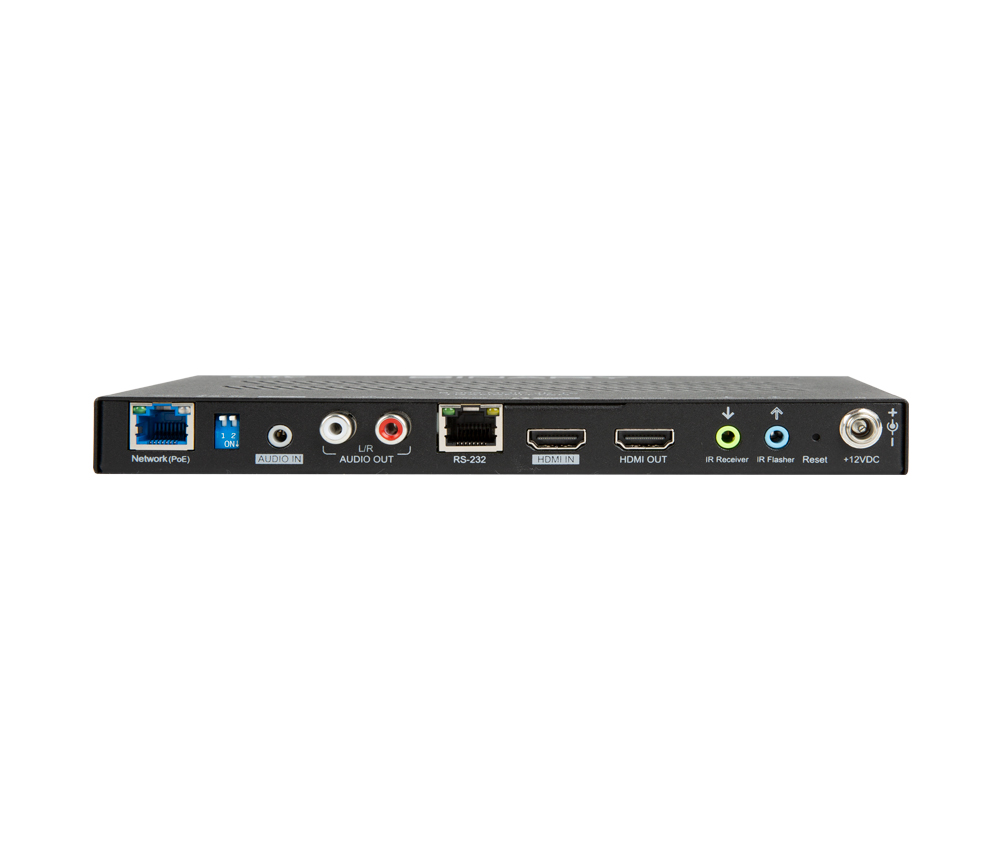

Binary™ 900 Series 4K Media over IP Transmitter
B-900-MOIP-4K-TX

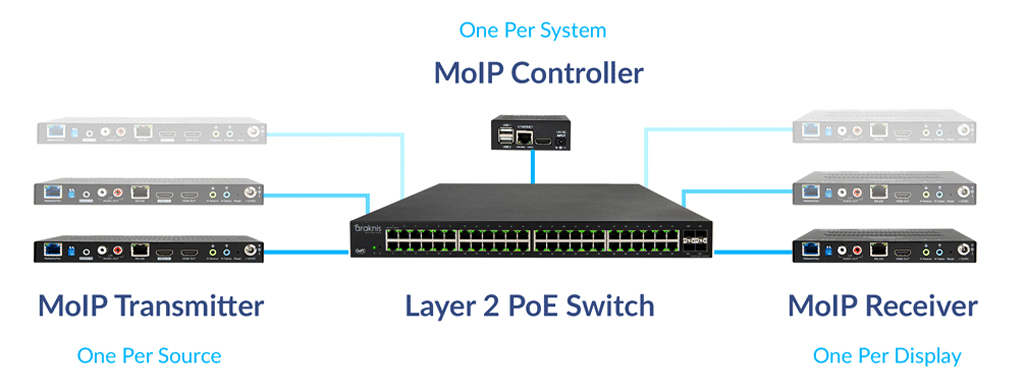

Binary™ 900 Series 4K Media over IP Transmitters, when joined in a system with a MoIP Receiver (B-900-MOIP-4K-RX or B-900-MOIP-4K-RX-RAC) and one MoIP Controller B-900-MOIP-4K-CTRL create a highly scalable, flexible IP media distribution system delivering visually lossless 4K HDR (HDR 30Hz and HDCP 2.2 compatible) video. Operating on a cost-effective gigabit Layer 2 PoE switch, this setup is the fastest and simplest out there. Additionally, OvrC remote management allows for quick system setup, easy troubleshooting with access to live screenshots of source streams and fast, simple firmware updates. MoIP Transmitters also include a selection of audio features that allow dealers to solve issues on every job, including HDMI loop-out, audio injection, audio breakout and the ability to fix the audio to stereo or 5.1 multichannel. Lastly, RS-232, IR, and custom drivers for popular control systems provide tremendous flexibility in system design.
Visually Lossless 4K Video
MoIP encodes video up to 4K HDR using visually-lossless, variable bit-rate compression technology. The system is HDR and HDCP 2.2 compatible, resulting in an ultra-stable video stream, perfect audio/video sync and ultra-low latency (one frame).
Versatile Audio
Each MoIP transmitter features versatile options for distributing audio. Multichannel audio including Dolby Atmos and DTS:X can be sent to an AV Receiver with the HDMI loop-out. For 2-ch PCM sources, stereo analog can be extracted for routing to multi-room distribution amplifiers, or injected to replace the HDMI audio. Lastly, the source can be forced to output stereo or multichannel to reduce potential complications after you leave the job.
Limitless Control Options
Switching of inputs (TX) to outputs (RX) is done through IP commands from a control system sent to the MoIP controller. Out of the box, the system supports three methods for controlling sources and displays: IR, RS-232 and CEC. IR or RS-232 commands can be issued via IP and generated at each endpoint. If desired, IR and RS-232 virtual routing can also be configured from any TX to any or all RX(s). Desired methods for issuing commands are selectable via the local UI. Lastly, for more basic installs where display on and standby is all that is needed, MoIP also supports CEC.
Real-Time Video Diagnostics
MoIP provides peace of mind when you leave the job. Not only is it inherently reliable, but there are a host of tools to assist in troubleshooting. Each transmitter provides a live screenshot of the source output, so you can quickly determine if the source is generating video. Additionally, deeper insights are readily available – such as resolution, refresh rate, color depth and HDCP version detected. Best of all, thanks to OvrC, all of this is easily accessed remotely so you can resolve issues caused by unpredictable sources – or customers – without rolling a truck.
Control System Integration
Our engineers have written drivers for the industry’s leading control systems, including Control4, Crestron, ELAN, URC and more – so controlling the system has a familiar feel. Advanced features like IR routing and RS-232 over IP deliver even more flexibility and customization – and we’ve even provided the MoIP controller’s API to create your own drivers if needed
Perfect for Commercial Applications
From small offices to large-scale bars and restaurants, Binary MoIP allows you to distribute multiple sources to any number of screens, or even create stunning video walls. Binary is also compatible with applications like DTVGameControl, which help your clients control and manage their devices.
The Binary MoIP Difference
The Fastest, Simplest Solution
Gone are the days of head-scratching system design, next-level network know-how and confusing configurations. Binary MoIP removes all that complexity, requiring only a Layer 2 PoE switch (210 and 310 Series), so you don’t need a network guru to install it. OvrC-enablement, simple setup and intuitive user-interfaces enable you to go from power-on to picture in 5 minutes or less.
Flexible & Scalable
The Binary MoIP solution allows you to fit, scale, and upgrade the solution to match your client’s specific needs. Need a 6x8 for one job and a 7x13 for another one? No problem. What about adding a video wall? Done. Instead of replacing the entire system, you can simply purchase new transmitters or receivers when adding sources or displays.
Ultra-Reliable HDR
With Binary MoIP, legacy EMI interference and HDCP/EDID issues are eliminated. Each source is encoded, visually lossless, at the highest quality possible (ex. 4K HDR). Then at each display, the signal is decoded from the network and scaled to the desired resolution (ex. 1080p or 4K HDR). Built-in scaling in the RX means that mixed 1080p/4K systems are no longer a problem, plus pass-through of all audio formats like Dolby Atmos and DTS:X are fully supported.
The Power of OvrC
Binary MoIP delivers something no other media product can – award-winning remote management. OvrC quickens initial setup by auto-discovering the controller, plus it provides unparalleled troubleshooting tools like real-time video screenshots.
Standalone App
Thanks to our standalone app that’s embedded into the controller firmware, your client’s MoIP system can be operated outside a traditional control system. Follow easy installation steps to give users access to switching of sources, displays, turn off displays, and save scenes (ex: “Game Night”) for easy recall.
Specs B-900-MOIP-4K-TX
Sold As
Each
Included Accessories
Mounting ears, Mounting ear screws, Rubber feet
Video Features
Interlaced Video Support: Yes
HDR Support: HDR 20/24Hz
Video Wall Support: Yes, 2x2, 3x3 and 4x4
Video Compression: Visually Lossless
Max. HDMI Bandwidth: 8.91Gbps
Max. HDMI Pixel Clock: 297MHz
Transmitter Video Resolution
Up to 4K HDR@30Hz 4:2:2 | 4K HDR@30Hz 10 bit | 4K UHD@30Hz 4:4:4 8bit
Plus Full 1080p HD and lower resolution including interlaced video formats
Receiver Video Resolution
HDR Content when available 4K HDR@30Hz 10 bit
Integrated scaler to support 4K|HDCP 2.2 on 1080p|HDCP 1.4 displays
HDCP Compliance
Yes
HDMI Connections
IN: 1 x 19 pin Type A Female
OUT: 1 x 19-pin Type A Female
Colorspace
RGB, YCbCr
Chroma Subsampling
4:4:4, 4:2:2, 4:2:0
Color Depth
8, 10, 12bit
Supported Audio Formats
2CH PCM, LPCM 2.0, LPCM 5.1, LPCM 7.1, Dolby Digital, Dolby True HD, Dolby Digital Plus, DTS, DTS-HD Master Audio, DTS NeoX, Dolby Atmos, DTS:X
Audio Features
Audio Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Audio Bit Depth: up to 24-bit
Audio Inputs / Outputs
Stereo Injection/Audio In: 1 x Mini Stereo 3.5mm Jack (replaces audio on HDMI In)
Stereo Breakout/Audio Out: 1 x L/R RCA Audio (Extraction audio only when 2ch audio is present)
Analog Audio In: Yes
Analog Audio Out: Yes
Control Features
TX/RX Switching: via MoIP Controller
2-Way IR Routing: Yes, independent of video
RS-232 via IP or virtual routing, Modify IR via 2-way routing or IP, Add Standalone App embedded into controller
IR Signal Frequency
20-60 kHz
IR Inputs
1 x 3.5mm Stereo (blue), 12V
IR Outputs
1 x 3.5mm Stereo (green)
System Configuration
Supports single switch deployments: Yes
Supports multiple switch deployments: Yes (multiple gigabit uplink required)
On-screen Device Identification: Yes
Auto Device Discover: Yes
DipSwitch 1 Controls
IR RCVR PWR OFF/ON
DipSwitch 2 Controls
Serial/RS-232 DTE/DCE
RS232 Control Desc.
RS-232 over IP
RS-232 Ports
1 x RJ-45 (EIA-561)
CEC
N/A
Networking Features
Required Managed Switch: Layer 2 Managed w/ IGMP Snooping
Req. Port Throughput: 1Gbps
Max. Distance from Switch: 100m (328 ft)
Compatible Category Cable: CAT 5E/6/6A/7
Bit Rate
150-300 Mbps (Avg) 850 Mbps (Max)
Ethernet Ports
1 x RJ45 (T568B) LAN + PoE
Latency
1 frame (16ms - 60Hz, 33ms - 30Hz)
Ethernet Pass Through 10/100Mbps
10/100/1000 Mbps
IP Address
Assigned by controller
Power Consumption
12VDC 2A (optional accessory)
PoE Consumption
7.5 Watts (Max)
Operating Humidity
20-90% RH (no condensation)
Operating Temperature
32-104°F
Storage Temperature
-4-140°F
Dimensions (W x H x D)
w/o rack ears: 8.2" x 0.83" x 4.72"
Rack Spacing
1U
Certifications
CE, FCC, RoHS
