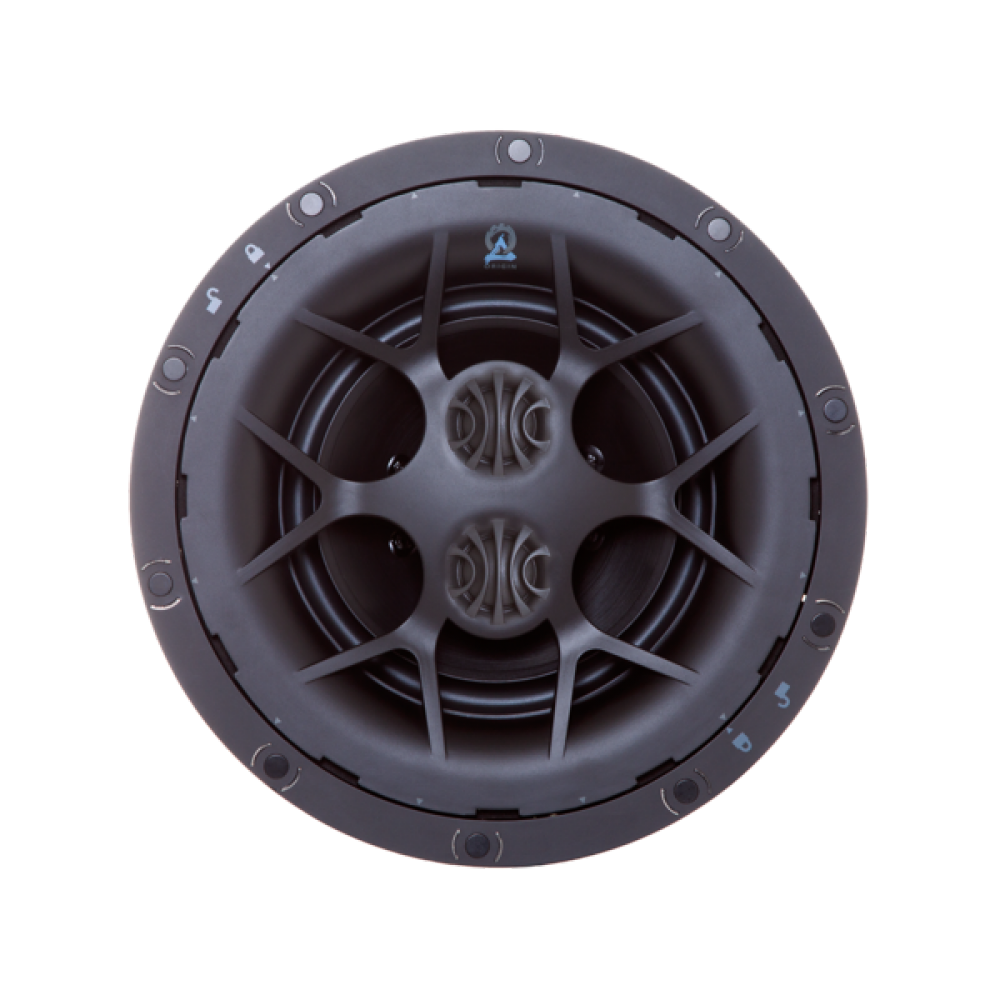

Director D60 DT

2-Way In Ceiling Speaker Featuring a 6.5-inch Polypropylene Woofer, Dual silk dome tweeters and Tool-Less Installation

Hand Selected Drivers

Choosing the right drivers is part of the blend of art and technology that creates Origin Acoustics‘ signature sound. The woofer cone in the D60DT is made of Poly Rubber which offers low mass and durability. The silk dome tweeter pivots allowing the installer to direct the critical high frequencies toward the listening area.

X-Wave Woofer Surround

While in motion, frequencies between 700-1,400 Hz typically run up the cone of a woofer and are reflected back and forth from the center of the driver. This creates unwanted harmonic distortion. The X-Wave surround found in Origin woofers absorbs these frequencies reducing distortion and maintaining driver stability. This design also maximizes cone area by reducing the width of the surround.

Progressive Suspension

As the driver travels to the limits of its excursion, the suspension, made up of the spider and the surround, becomes more rigid, exerting more control on the movement of the cone. The result is increased, clean power output throughout the driver‘s frequency range.

Compression Molded Woofer Baskets

Utilizing the latest techniques and materials in plastic fabrication, Origin is able to create basket designs with superior stability and acoustic neutrality. These baskets combine with the driver suspension to increase linearity and improve overall performance.

Tool-Less Installation

It is important when installing a loudspeaker in the ceiling that it be stable and secure, restricting the vibration of the assembly and limiting transfer of energy into the wall. The revolutionary Tool-Less Installation (Patent #9591390) spreads the weight of the speaker over a larger area than typical mounting systems accomplishing this result with minimal effort. Spring-loaded clips also create more uniform pressure against the drywall eliminating any warping or distortion of the speaker baffle.

Magnetic Grille

A paintable, perforated grille with a micro bezel covers the entire speaker assembly and leaves a discreet finished appearance. Its magnetic attachment makes removing or replacing the grille fast and easy.

Let it Sink in

With an IPX6 rating, the entire Director Collection is at the top of the class. This rating ensures that these high-performance are safe from the corrosion and internal damage commonly posed by exposure to ocean water and rainstorms--backed by a lifetime warranty.


Specifications

Model Number: D60DT
Part Number: SCD2T60000
Tweeter Dome: Silk
Tweeter Diameter: 1" (25mm)
Woofer Cone: Polypropylene
Woofer Diameter: 6.5" (165mm)
Frequency Response: 48Hz-20kHz
Impedance: 8 ohm
Recommended Amplifier Power: 25 watts - 125 watts
Sensitivity: 89dB +/- 3dB
Depth: 3.57" (91mm)
Diameter: 9.61" (244mm)
Cutout Diameter: 8.75" (222mm)
Input Sensitivity: 89dB ± 3dB
