Satellithögtalare för inbyggnad i tak
Architectural Series Discreet Opening System
• Discreet opening system delivers amazing sonic performance with minimal visual intrusion
• Totally flush aesthetic that exactly matches size of round or square trim-less downlights
• Unique satellite speaker and subwoofer system delivers even coverage in any sized space
• Patented mounting platforms deliver a high-quality installation with precision grille leveling

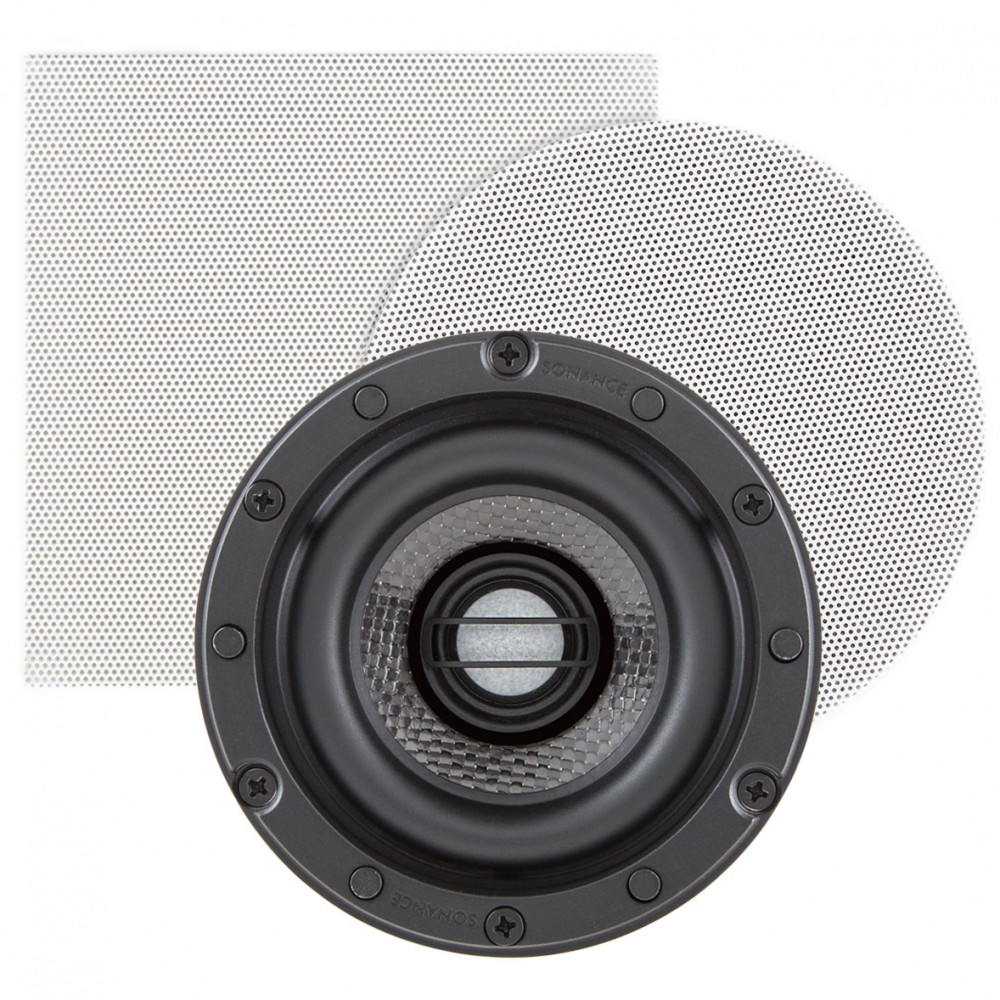

Specifications AS38RS
Grille: Ships w/ Round 4" (102mm) and Square 4" (102mm) perforated steel grilles
Dimensions (Dia x D): —
Shipping Weight: 1.58kg each
Tweeter: 3/4" (19mm) ceramic dome, Ferrofluid-cooled, in acoustic back chamber
Woofer: 3 1/2" (89mm) carbon fiber/Rahacell laminated cone with a rubber surround
Frequency Response: 75Hz - 20kHz +/-3dB
Impedance: 10 ohms nominal; 8 ohms minimum
Power Handling: 100 watts maximum
Sensitivity: 83dB SPL (2.83V/1 meter)
High Pass Filter: 125Hz 6dB per Octave
Dimensions (Dia x D): 100mm x 104.14mm
Säljs per st. Subwoofer säljs separat.
