Satellithögtalare för inbyggnad i tak
Architectural Series Medium
• Totally-flush and trimless round or square aesthetic provides minimal visual distraction.
• Independently pivoting woofer and tweeter to direct sound where required.
• Patented mounting platforms deliver a high-quality installation with precision grille leveling.
• Optional bandpass subwoofer delivers large speaker performance and bass response.

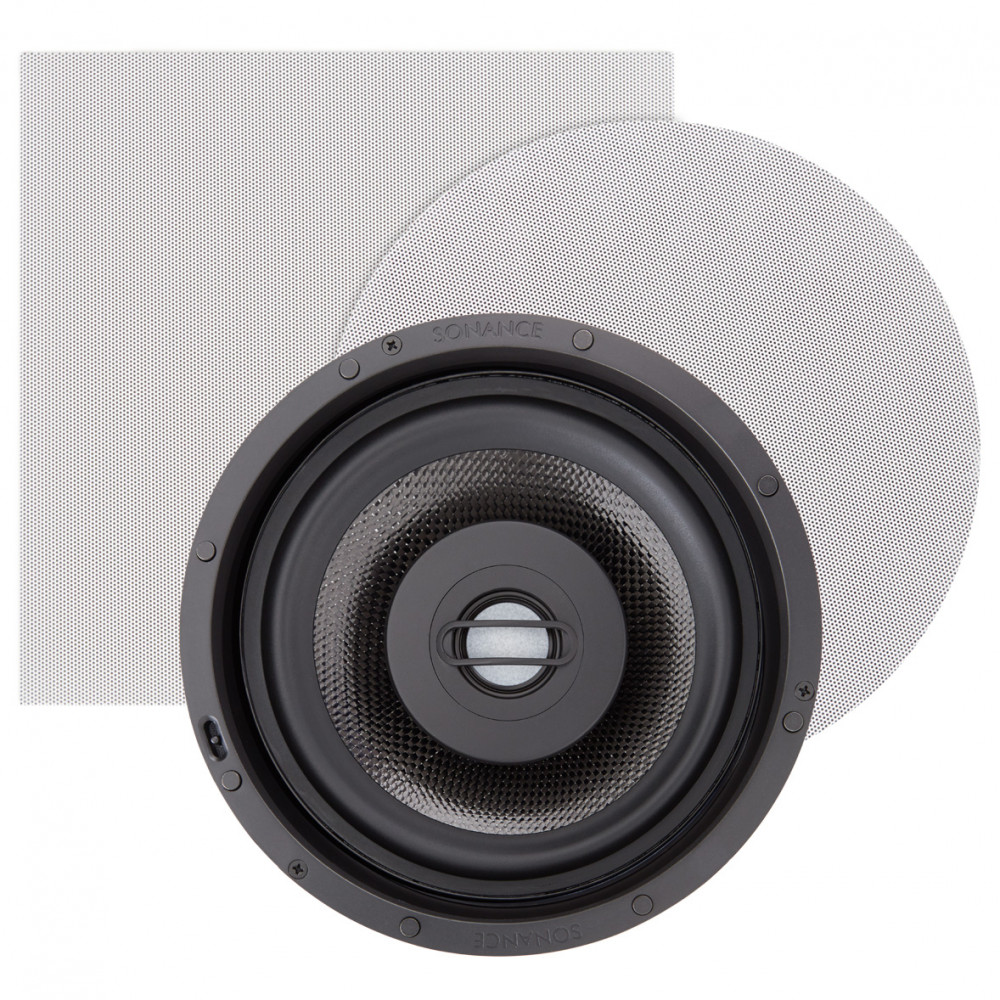

Specifications AS68RS
Grille: AS68RS shipped w/ Round 8" (203mm) and Square 8" (203mm) perforated steel grilles
Shipping Weight: 3.62kg each

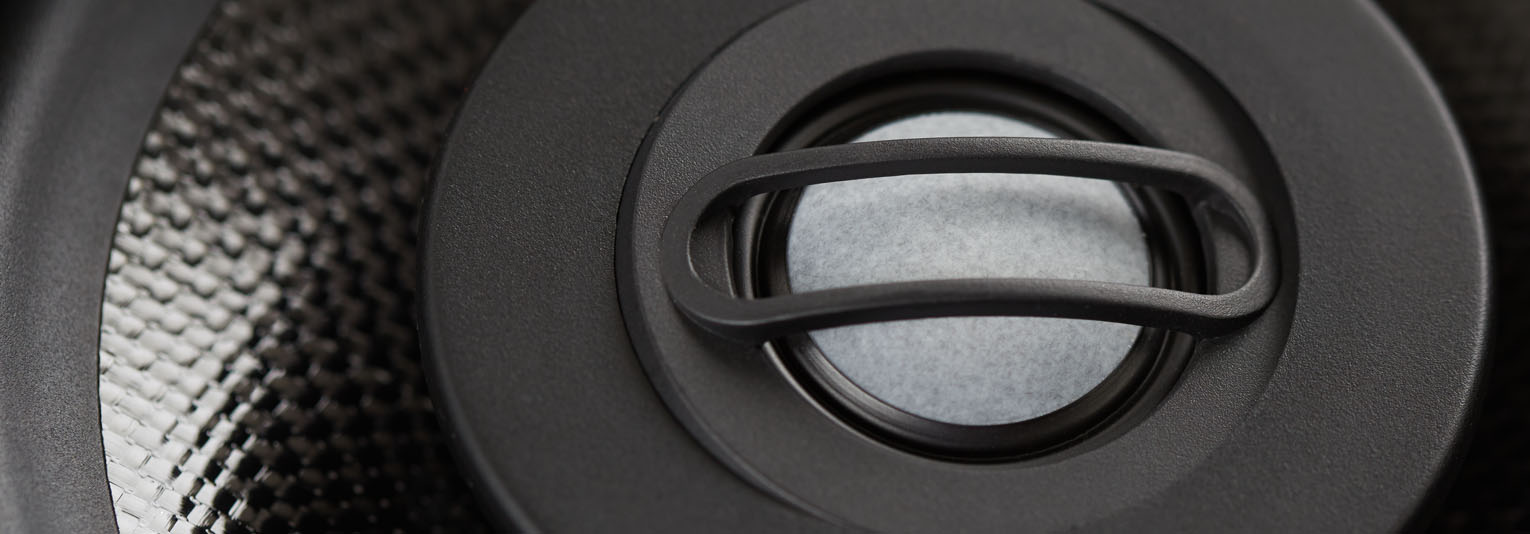

Tweeter: 1" (25mm) ceramic dome, Ferrofluid-cooled, pivoting, in acoustic back chamber
Woofer: 6 1/2" (165mm) Carbon fiber/Rohacell laminated cone with a rubber surround, pivoting
Frequency Response: 40Hz - 20kHz +/-3dB
Impedance: 6 ohms nominal; 4 ohms minimum
Power Handling: 5 watts minimum; 150 watts maximum
Sensitivity: 90dB SPL (2.83V/1 meter)
High Pass Filter: 90Hz 6dB per Octave
Dimensions (Dia x D): 203mm x 131mm
Säljs per st. Subwoofer säljs separat.
