Luma Surveillance™ 110 Series Bullet IP Outdoor Camera
Lumas low-cost mini-bullet IP camera features ultra-clear 2MP resolution with WDR and advanced motion technology. A dedicated third video stream offers improved image clarity on control systems, and LumaLink support makes set-up and monitoring a breeze.
Part of the OvrC Ecosystem
Key Features
High-Definition
This Luma camera offers high-definition 2MP to deliver HD images up to 1920×1080. They also provide balanced lighting and clarity through WDR.

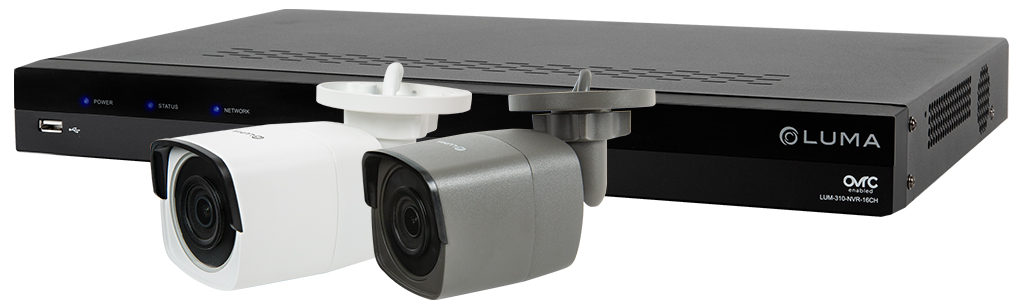

Low-Cost Surveillance Solution
The Luma 110-Series IP camera pairs perfectly with our Luma 310 NVR for our lowest cost surveillance system option to date.

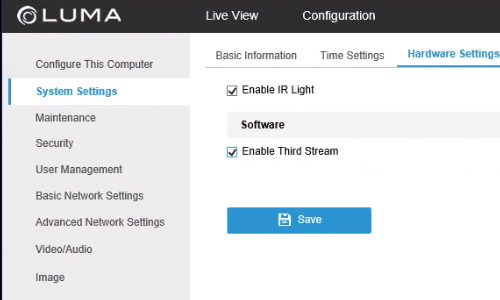

Dedicated Control Stream
These cameras offer a third video stream optimized for control system streaming. Using this stream, you can provide clear HD video to a control system at 1080p. The third H.264 stream is independent from the full resolution H.265 main stream.
Smart Motion Technology
Schedule email notifications and alerts based on new line crossing or custom intrusion settings. Postal worker pulls into the driveway? You can set an alert to notify or start recording the second a truck crosses the line. New intrusion detection settings can also trigger an event based on movement in a custom box area, so you can capture movement from the fence line in a backyard.

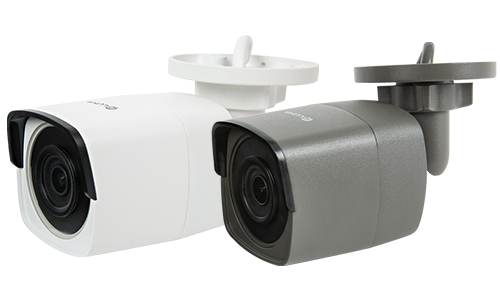

Low-Profile Housing
These mini-bullet cameras have a small and sleek profile to blend in while still offering the highest quality security footage.
Storage-Friendly Encoding
Our Luma IP cameras support the H.265 video codec. This updated codec uses roughly 40% less data than H.264, achieving the same footage quality while nearly doubling the efficiency of your recorder’s hard drive storage space.

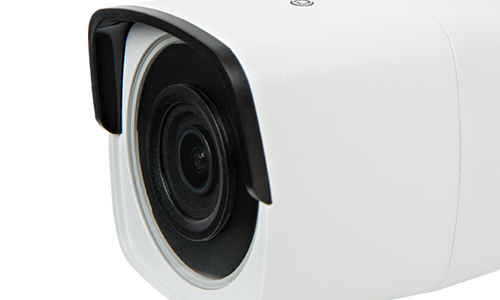

Low-Maintenance
Luma bullets offer ease of install and are less susceptible to IR glare from dirt and dust that might accumulate over time, making them easy to care for.

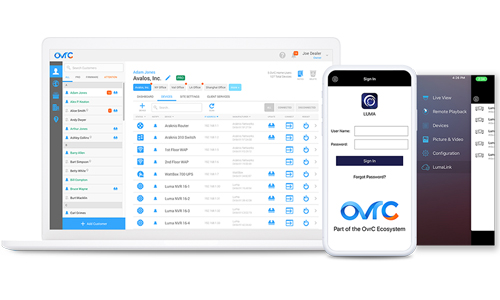

LumaLink Support
LumaLink offers P2P service, fast setup, and more security than traditional port forwarding and DDNS. Normally, you would use LumaLink with an NVR for direct access to the system, but in cases where you just have a standalone camera with no NVR, LumaLink is now supported by Luma cameras.
Custom Settings for Day or Night
Set the optimal custom levels for any time of day.
Wide Dynamic Range
Adjusts near field brightness for dimmer parts of the scene by combining both long and short exposure frames, compensating for shadowy areas created by overly bright image sections.
Backlight Compensation
Amplifies the normal video signal in dim conditions to draw out even the lowest light across the entire scene.
Specifications
Color
White
Features
Data I/O (Alarm): no
Local Power - test port: No
Local Video - test port: No
Aspect Ratio
16:09
IR Range
30m
Mirror Mode
Yes
Motion Detection
Smart Motion Detection
Sense-Up (Elec. Shutter)
No
Smart IR
Yes
IR Wavelength
850nm
Streams
Main Stream:Up to max resolution H.265+, H.265, or H.264
Sub Stream:Up to 640*480 H.265,H.264,MJPEG
Third Stream:Up to 1080P H.265，H.264
IR Auto Switch
Yes
Horizontal FOV
103°
Vertical FOV
59°
Image Sensor
2MP (1920 x 1080 resolution)
Frame Rate
Max - 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Starlight Enabled
No
Lens
Fixed 2.8mm
Minimum Illumination
Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON)
Backlight Compensation
Yes
WDR
True WDR
DNR
3D-DNR
Recording Trigger
Yes
Full Screen Monitoring
Yes
Image Snapshot
Yes
Audio Inputs / Outputs
None
SD Card Support
Yes, up to 128GB
Network / Ethernet Desc.
PoE - IEEE 802.3af class 3
Power Consumption
DC 12V 0.5A,7.5W
PoE(802.3af,36-57V)| 0.2-0.1A
Weather Rating
IP66
Certifications
CE, FCC, UL, ONVIF
Operating Temperature
-22-140°
Dimensions (W x H x D)
2.6" x 2.6" x 6" (65.5mm x 65.6mm x 153.7mm)
