Luma Surveillance™ 110 Series Dome IP Outdoor Camera

Luma Surveillance™ 110 Series Dome IP Outdoor Camera

Lumas low-cost dome IP camera features ultra-clear 2MP resolution with WDR and advanced motion technology. A dedicated third video stream offers improved image clarity on control systems, and LumaLink support makes set-up and monitoring a breeze.

Part of the OvrC Ecosystem

Key Features

High-Definition

This Luma camera offers high-definition 2MP to deliver HD images up to 1920×1080. They also provide balanced lighting and clarity through WDR.High-Definition

Low-Cost Surveillance Solution

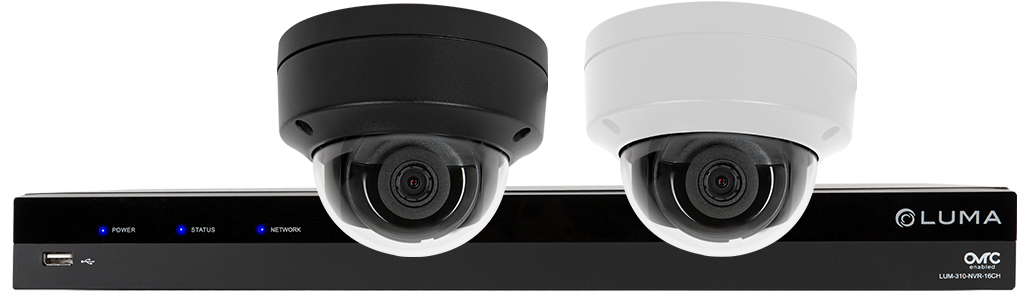

The Luma 110-Series IP camera pairs perfectly with our Luma 310 NVR for our lowest cost surveillance system option to date.

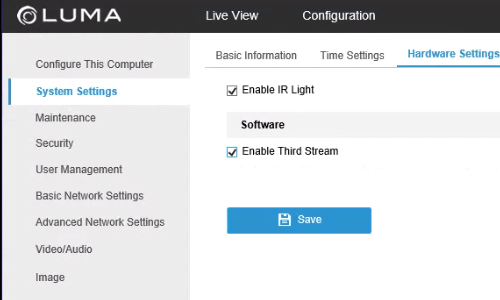

Dedicated Control Stream

These cameras offer a third video stream optimized for control system streaming. Using this stream, you can provide clear HD video to a control system at 1080p. The third H.264 stream is independent from the full resolution H.265 main stream.

Storage-Friendly Encoding

Our Luma IP cameras support the H.265 video codec. This updated codec uses roughly 40% less data than H.264, achieving the same footage quality while nearly doubling the efficiency of your recorder’s hard drive storage space.



Power-over Ethernet (PoE)

All Luma cameras support a PoE connection to make power and network as simple as possible over one cable.

Smart Motion Technology

Schedule email notifications and alerts based on new line crossing or custom intrusion settings. Postal worker pulls into the driveway? You can set an alert to notify or start recording the second that truck crosses the line. New intrusion detection settings can also trigger an event based on movement in a custom box area, so you can capture movement from the fence line in a backyard.

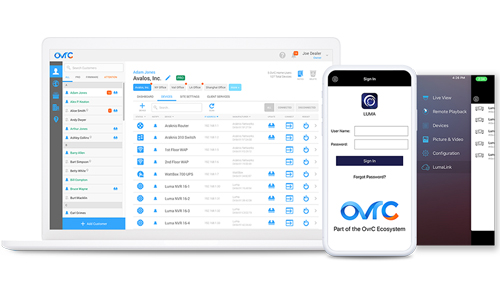

LumaLink Support

LumaLink offers P2P service, fast setup, and more security than traditional port forwarding and DDNS. Normally, you would use LumaLink with an NVR for direct access to the system, but in cases where you just have a standalone camera with no NVR, LumaLink is now supported by Luma cameras.

Custom Settings for Day or Night

Set the optimal custom levels for any time of day.

Wide Dynamic Range

Adjusts near field brightness for dimmer parts of the scene by combining both long and short exposure frames, compensating for shadowy areas created by overly bright image sections.

Backlight Compensation

Amplifies the normal video signal in dim conditions to draw out even the lowest light across the entire scene.


Specifications

Color
White

Features
Data I/O (Alarm): no
Local Power - test port: No
Local Video - test port: No

Aspect Ratio
16:09

IR Range
30m

Mirror Mode
Yes

Motion Detection
Smart Motion Detection

Sense-Up (Elec. Shutter)
No

Smart IR
Yes

IR Wavelength
850nm

IR Auto Switch
Yes

Horizontal FOV
114°

Vertical FOV
62°

Image Sensor
2MP (1920 x 1080 resolution)

Frame Rate
Max - 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Starlight Enabled
No

Lens
Fixed 2.8mm

Minimum Illumination
Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON)

Backlight Compensation
Yes

WDR
True WDR

DNR
3D-DNR

Recording Trigger
Yes

Full Screen Monitoring
Yes

Image Snapshot
Yes

Audio Inputs / Outputs
None

SD Card Support
Yes, up to 128GB

Network / Ethernet Desc.
PoE - IEEE 802.3af class 3

Power Consumption
DC 12V 0.5A,7.5W
PoE(802.3af,36-57V)| 0.2-0.1A

Weather Rating
IP66

Certifications
CE, FCC, UL, ONVIF

Operating Temperature
-22-140°

Diameter
4" (100.4mm)

Height
3.2" (82.4mm)

Streams
Main Stream:Up to max resolution H.265+, H.265, or H.264
Sub Stream:Up to 640*480 H.265,H.264,MJPEG
Third Stream:Up to 1080P H.265，H.264
