MiniDSP UMIK-1, USB-mätmikrofon

USB calibrated measurement microphone for a plug&play measurement of your system.
1 690 kr
Lägsta priset senaste 30 dagarna
1 690 kr
Lägg i varukorgen
Mer produktinformation
Beställningsvara (5-7 dagar för varor som finns i lager hos leverantören)
Fri frakt vid köp över 600 kr
Garanti i 24 månader

USB calibrated measurement microphone for a plug&play measurement of your system

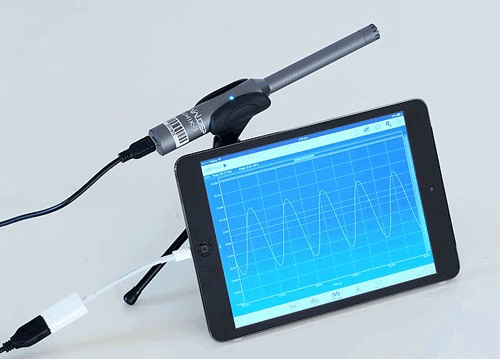

The UMIK-1 is an omni-directional USB measurement microphone providing Plug & Play acoustic measurement. From speaker & room acoustic measurement to recording, this microphone provides low noise and accurate results you can rely on. Forget about driver installation, OS compatibility and un-calibrated mics. The Umik-1 is a USB Audio class 1 device automatically recognized by all Operating Systems (Windows/Mac) and Ipad with Camera Connection Kit. It is provided with a unique calibration file based on the serial number to insure an accurate measurement. Combined with our recommended acoustic measurement software, it is the perfect match for a plug&play measurement system.


• Windows/Mac/Linux
• All measurement software
• Special features such as calibrated SPL measurement enabled under free Room EQ Wizard (REW) software
• Frequency response: 20 Hz - 20kHz +/-1dB with calibration loaded
• USB Audio: USB Audio class 1.0 Driverless interface for Windows, Mac & Linux

What's in the box?

1 x UMIK-1 microphone
1 x shielded USB cable (1.5m)
1 x mini Tripod
1 x foam wind screen

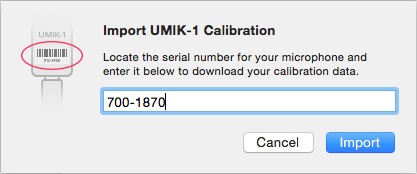

Unique Calibration File Download

All UMIK-1 are calibrated with a unique calibration file. In addition, a unique auto-generated 90-degree calibration file for use with surround system applications. To download the calibration files, look for the 7 digit Serial Number found on the body of the microphone.

Enter the serial number in the form (link below) (three digits then four digits e.g. 700-XXXX).
Your calibration files will automatically download in most browsers. If not, click on the links provided to manually download.

Which calibration file should I use and where to point the UMIK-1?

We provide two calibration files to be used depending on your application.

- For stereo system (e.g. 2ch dirac live, single speaker measurement), use the 0deg file and point the UMIK-1 at the speakers
- For multichannel system (E.g. 5.1/7.1) or a surround application where multiple speakers are spreadout around the room, use the 90deg file and point the UMIK-1 at the ceiling.

Recommended by our Friends

The miniDSP team built long term relationships with the following leading software applications and is proud to showcase them as our recommeded software solutions:

REW: miniDSP worked along with John Mulcahy to develop even greater compatibility for the UMIK-1 inside REW! With the latest beta release of REW (v5.01 and up), the UMIK-1 is automatically recognized by the software and prompted for use when REW is started with the microphone plugged in.

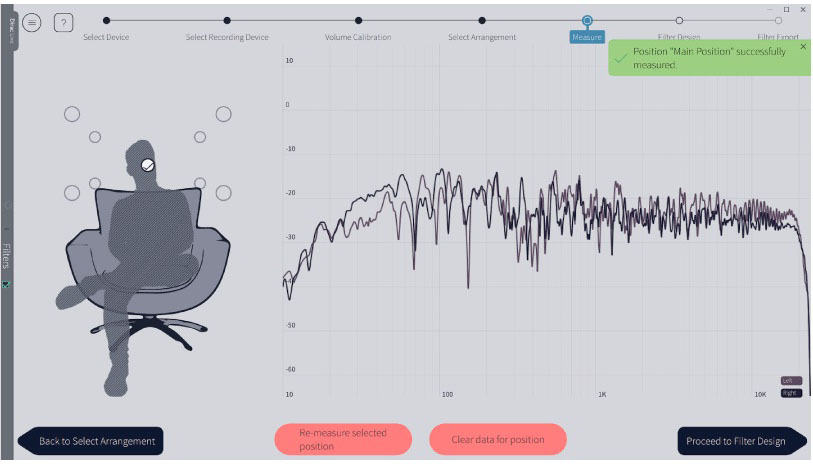

Dirac Live: As a well known reference in the world of room correction with countless high end audio/automotive, we're honored to have Dirac as part of our partners. The UMIK-1 is the recommended microphone by Dirac Research.
