ORIGIN ACOUSTICS PROFESSIONAL COLLECTION
The Professional Collection from Origin Acoustics elevates commercial audio with audiophile sensibilities and durable, integrator friendly design. The collection features premium nearly transparent transformers for full fidelity 70/100v listening, robust crossover networks and convenient connection points to ensure every installation is straight forward and sounds fantastic.
IN-CEILING MODELS
Our In-Ceiling Collection goes above and beyond the competition with integrator friendly features and overall musicality. Each model is a 2-way loudspeaker with a pivoting silk DPSD™ tweeter, utilizing Origin’s patented Multi-Motion Pivot™ for superior aiming and dispersion. With an integrated conduit lock, heavy-duty dog-ears, and secure euro-block connections, this series is ready for installation into even the most challenging commercial environments. Black and white, low-profile paintable grilles reduce ceiling visibility and are available in square or round.

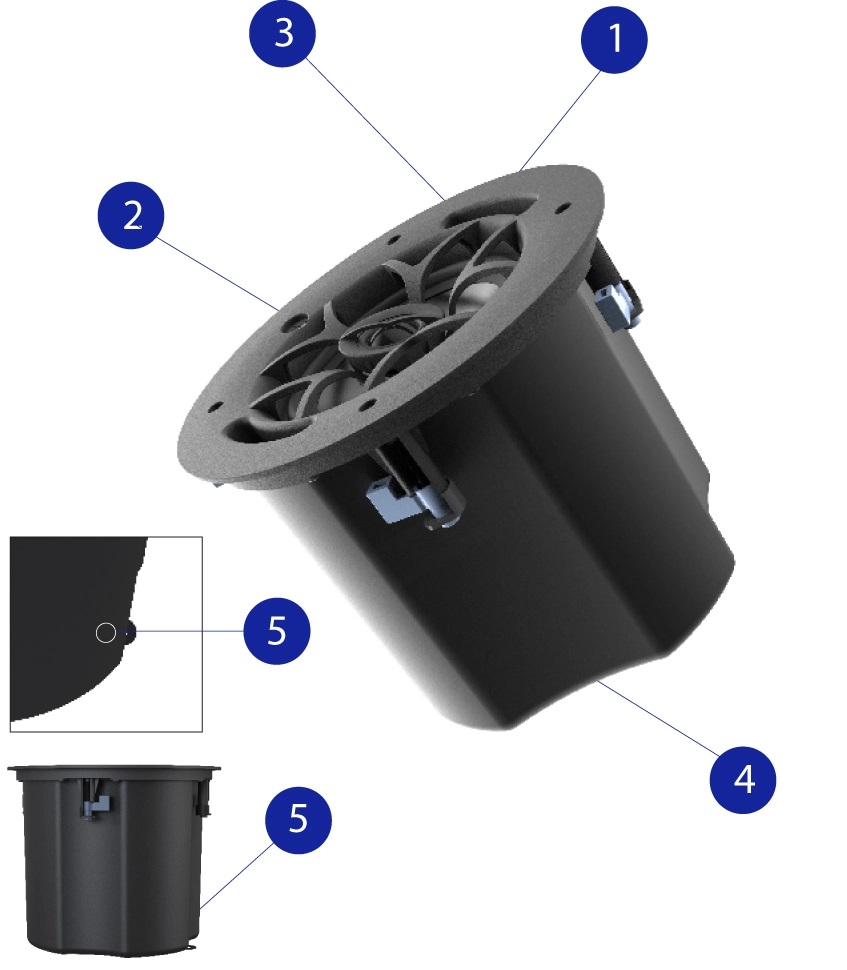

1. DPSD™ & Multi-Motion Pivot™ Tweeter
2. Front Mounted 8 ohm, 70/100v Tap Switch w/ Premium Transformer
3. Bass Enhancing Woofer Ports
4. Phoenix Connector & Conduit Lock
5. Safety Strap Connection for Seismic Events

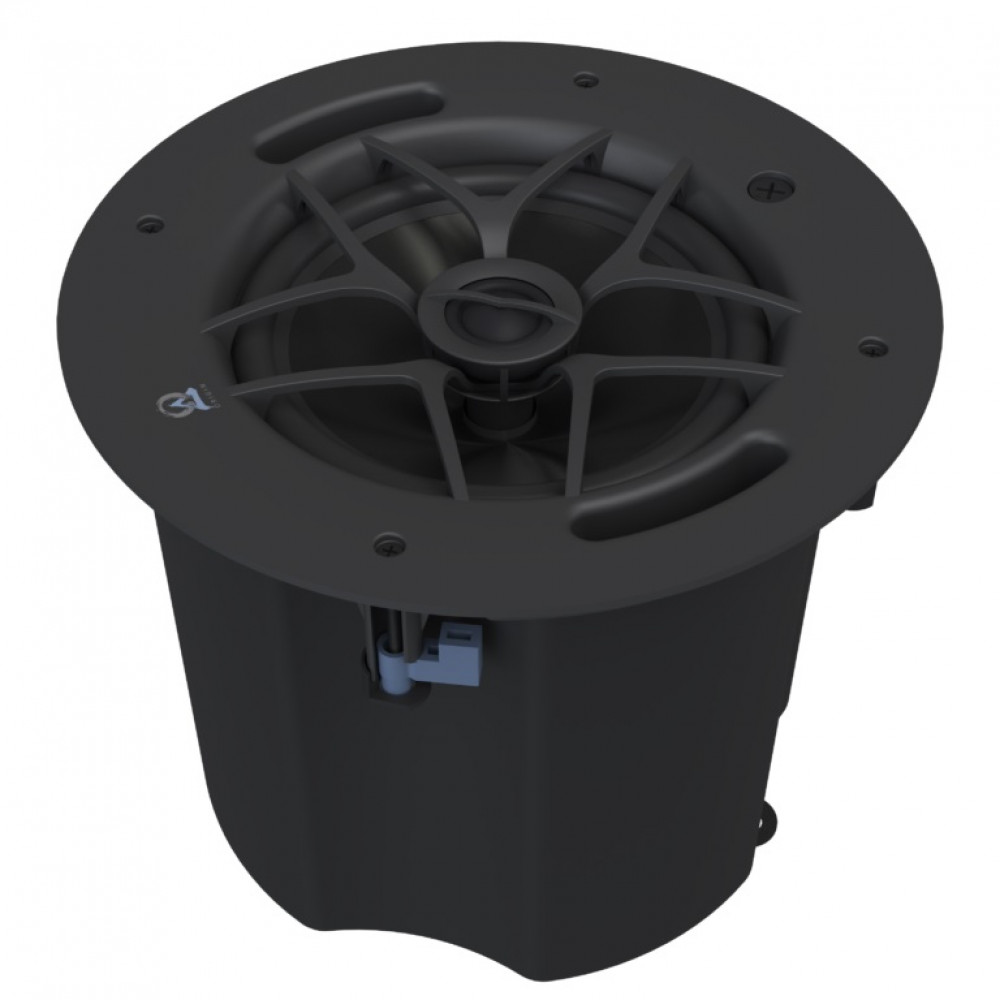

Specifications PC80
Woofer: 8" IMPP
Tweeter: 1" Silk DSPD MMP
Power Handling (Program Power): 120 Watts
Power Handling (Continuous Pink Noise): 60 Watts
Frequency Response(-10db): 41Hz - 20kHz
Frequency Response (-3db): 60Hz - 20kHz
Nominal Coverage Angle: 100° Conical Coverage
Sensitivity: 92dB
Rated Maximum SPL: 112dB
Impedance: 6 Ohm/70V/100V
Transformer Taps: 70V - 60W, 30W, 15W, 7.5W | 100V - 60W, 30W, 15W
Diameter: 11 1/4" (286mm)
Cutout Diameter: 10 1/2" (266mm)
Grille Diameter: 11 5/8" (296mm)
Mounting Depth: 9 1/2" (242mm)
Feature: Metal Can, Zinc Plated
Colors: Black
