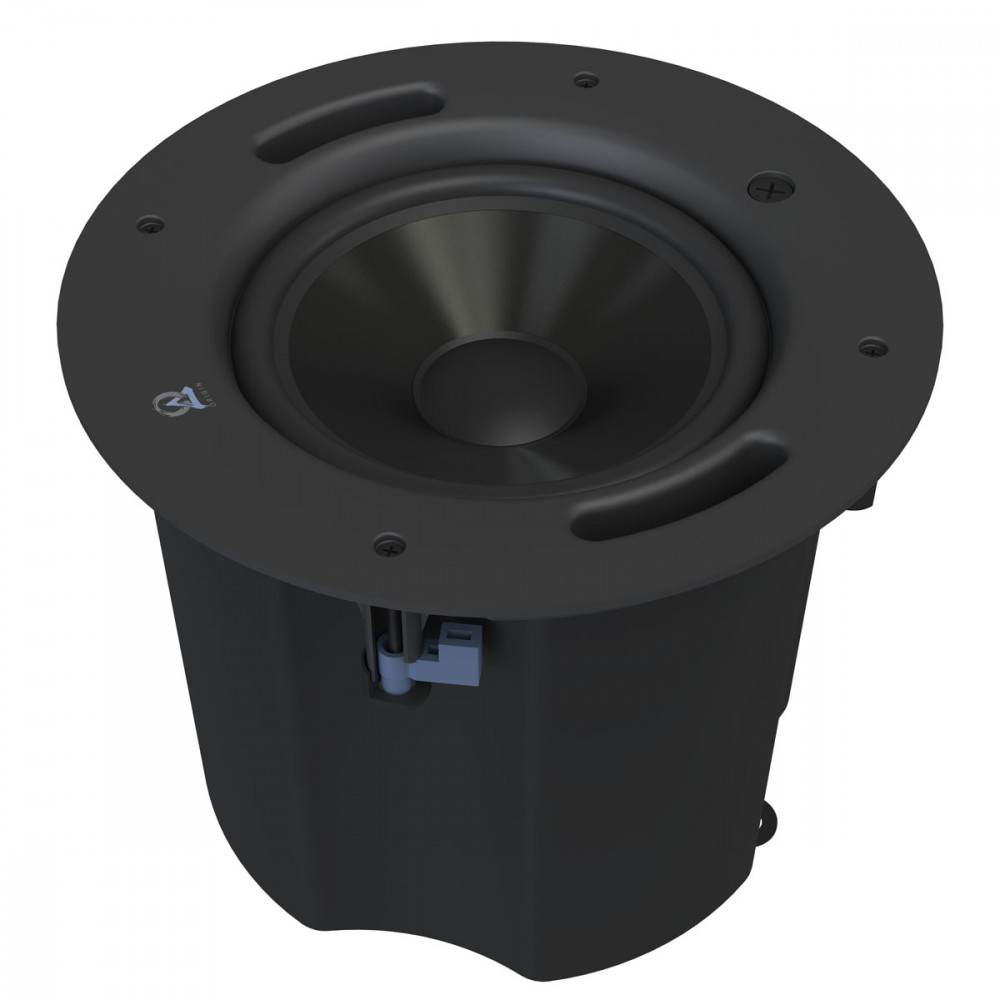

Origin Acoustics PCSUB8

Subwoofer för inbyggnad i tak, i Origin Acoustics Pro Line

ORIGIN ACOUSTICS PROFESSIONAL COLLECTION

The Professional Collection from Origin Acoustics elevates commercial audio with audiophile sensibilities and durable, integrator friendly design. The collection features premium nearly transparent transformers for full fidelity 70/100v listening, robust crossover networks and convenient connection points to ensure every installation is straight forward and sounds fantastic.

IN-CEILING MODELS

Our In-Ceiling Collection goes above and beyond the competition with integrator friendly features and overall musicality. Each model is a 2-way loudspeaker with a pivoting silk DPSD™ tweeter, utilizing Origin’s patented Multi-Motion Pivot™ for superior aiming and dispersion. With an integrated conduit lock, heavy-duty dog-ears, and secure euro-block connections, this series is ready for installation into even the most challenging commercial environments. Black and white, low-profile paintable grilles reduce ceiling visibility and are available in square or round.


Specifications PCSUB8

Woofer: 8” IMPP
Power Handling (Program Power): 200 Watts
Power Handling (Continuous Pink Noise): 100 Watts
Freq. Response(-10dB): 39Hz - 20kHz
Freq. Response(-3dB): 55Hz - 20kHz
Nominal Coverage Angle: 180° Conical Coverage
Sensitivity: 91dB
Rated Maximum SPL: 110dB
Impedance: 6 ohm nominal
Transformer Taps: 70V - 100W, 50W, 25W, 12.5W | 100V - 100W, 50W, 25W
Diameter: 11 1/4" (286mm)
Cutout Diameter: 10 1/2" (266mm)
Grille Diameter: 11 5/8" (296mm)
Mounting Depth: 9 1/2" (242mm)
Feature: Metal Can, Zinc Plated
Colors: Black
