THINFIT LOUDSPEAKERS
SHALLOW DEPTH LOUDSPEAKERS
As audio installations have become more common, speakers are being placed in all types of environments. Sometimes, the requisite depth behind the drywall for a traditional in-wall or inceiling speaker does not exist. Our Thinfit CollectionTM allows for speakers to be mounted in many of these locations.
EASY FIT
Requiring only 36mm of mounting depth, these speakers can be easily installed in all but the most restrictive spaces.
All of our Thinfit speakers mount with less than two inches of clearance, perfect for those oh-no moments when there’s a surprise behind the drywall. The multiple woven glass-fiber woofers provide a surprising amount of low-end and volume, with the clarity and musicality you expect from Origin Acoustics. Available in three designs, two for ceiling applications and one D’Appolito model for in-wall use.

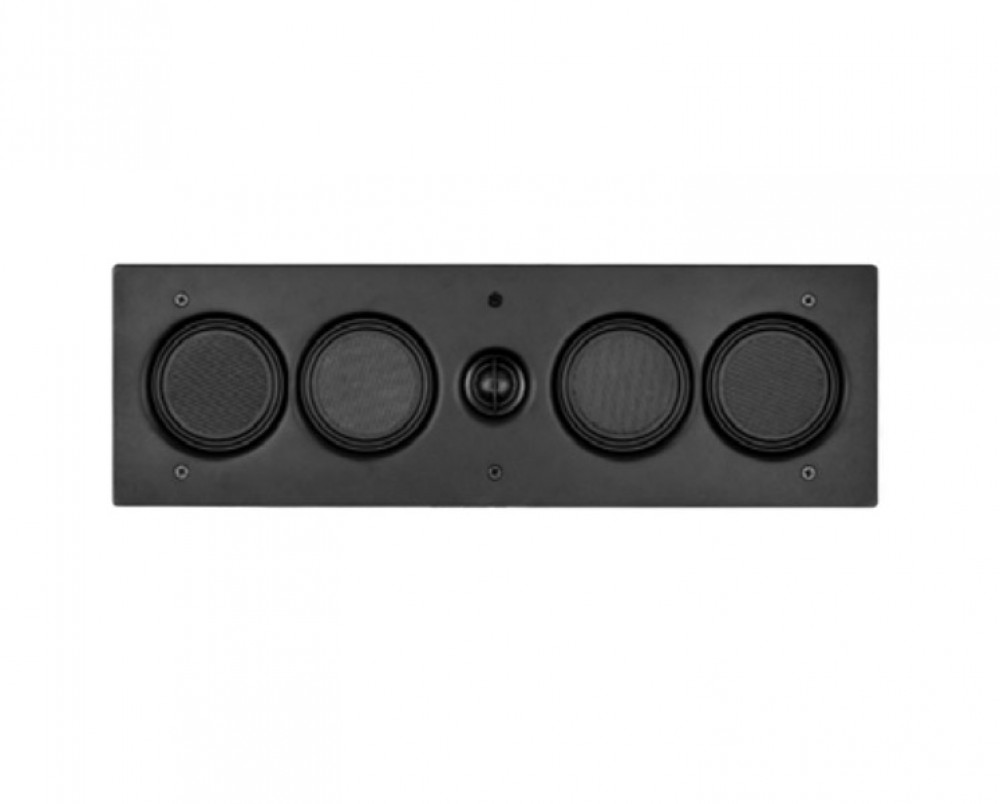

Specifications TFIW37EX
Part: STFIW3700EX
Tweeter Diameter: 3/4" (20mm)
Tweeter Dome: Aluminum
Woofer Diameter: Quad 3½" (89mm)
Woofer Cone: Glass Fiber
Frequency Response: 90Hz - 20kHz
Recommended Amp: 30 watts - 100 watts
Nominal Impedance: 6 Ω minimum
Mounting Depth: 36mm
Dimensions: 140 x 440 x 36mm
Cutout Dimensions: 116 x 416mm
Grille Dimensions: 152 x 452mm
