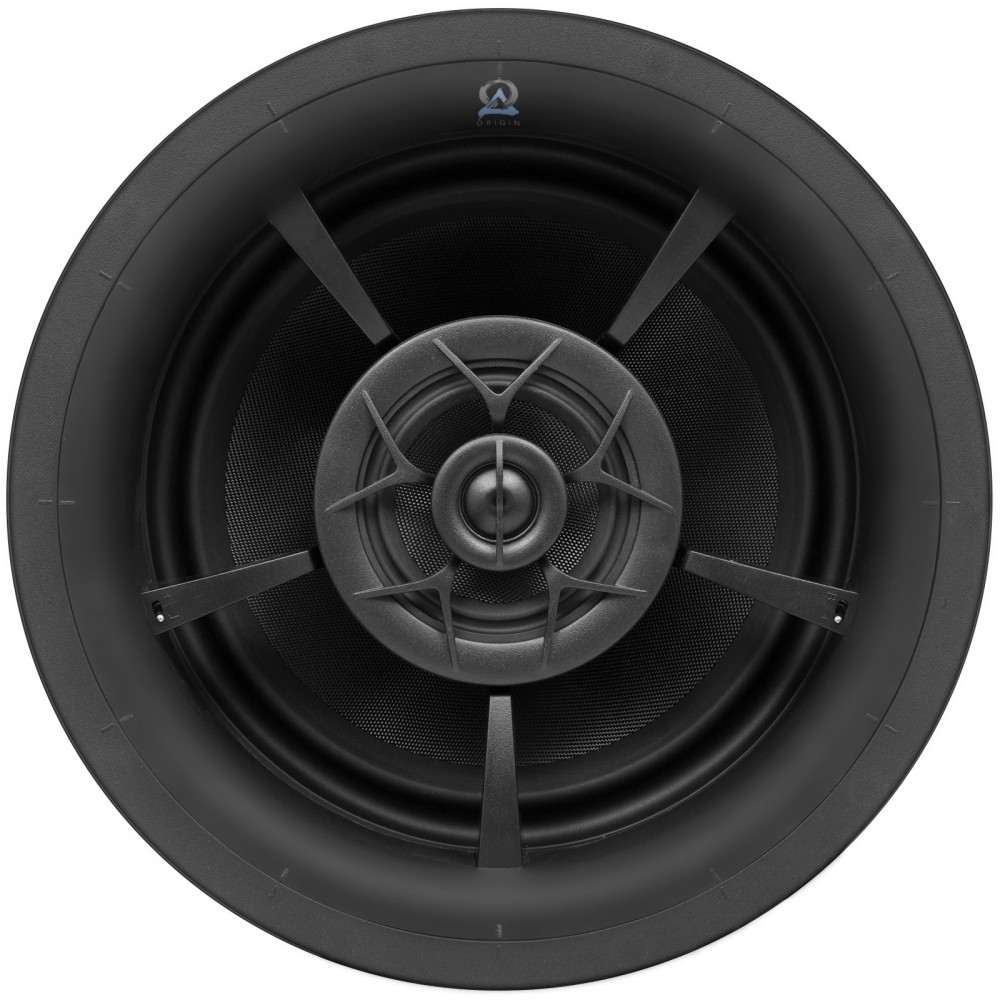

DIRECTOR D107 IN-CEILING LOUDSPEAKER

Director 10″ Series – Fully Pivoting 3-Way In-Ceiling Loudspeaker with a 10″ Kevlar Woofer, Exclusive DSPD Tweeter Technology, and Tool-Less Installation.

– GLASSFIBER WOOFER & MIDRANGE
– TWO-WAY PIVOTING MID AND TWEETER
– SILK DPSD TWEETER
– TOOL-LESS INSTALLATION
– IPX6 RATING

TOOL-LESS INSTALLATION

Interchangeable, secure, elegant. This is the way in-ceiling loudspeakers are meant to be installed. The Director Collection utilizes our tool-less mounting system to provide secure installation in any ceiling. The spring-loaded clips with multiple points of contact ensure the weight is distributed more evenly than traditional dog-legs which protects your ceiling and decreases unwanted vibration transfer.

MORE BASS. LESS SPACE.

Our 10″ in-ceiling loudspeakers have the smallest cut-out of any 10″ on the market. In fact, it’s the same size as old-school 8″ in-ceiling cutouts. So by choosing our 100 Series loudspeakers, you are able to effectively have more bass, in less space.

TRI-LINEAR CONFIGURATION (TLC)

Simply put, the TLC is Origin Acoustics’ 3-way in-ceiling loudspeaker design. With an elegant stacked system of transducers, we’ve increased the pivot of the loudspeaker so you can hear every detail, just like if the speaker was right in front of you.

DUAL PLANE STABILIZED DIAPHRAGM (DPSD™)

A patented tweeter design that improves high-frequency performance, the DPSD™ radiator uses a unique suspension design that prevents distortion and increases loudness. The suspension is attached at both the voice-coil and the peak of the dome allowing the driver to be crossed over at a much lower frequency. This results in improved dispersion and decreased distortion.

TOOL-LESS INSTALLATION

Interchangeable, secure, elegant. This is the way in-ceiling loudspeakers are meant to be installed. The Director Collection utilizes our tool-less mounting system to provide secure installation in any ceiling. The spring-loaded clips with multiple points of contact ensure the weight is distributed more evenly than traditional dog-legs which protects your ceiling and decreases unwanted vibration transfer.

MORE BASS. LESS SPACE.

Our 10″ in-ceiling loudspeakers have the smallest cut-out of any 10″ on the market. In fact, it’s the same size as old-school 8″ in-ceiling cutouts. So by choosing our 100 Series loudspeakers, you are able to effectively have more bass, in less space.

TRI-LINEAR CONFIGURATION (TLC)

Simply put, the TLC is Origin Acoustics’ 3-way in-ceiling loudspeaker design. With an elegant stacked system of transducers, we’ve increased the pivot of the loudspeaker so you can hear every detail, just like if the speaker was right in front of you.

DUAL PLANE STABILIZED DIAPHRAGM (DPSD™)

A patented tweeter design that improves high-frequency performance, the DPSD™ radiator uses a unique suspension design that prevents distortion and increases loudness. The suspension is attached at both the voice-coil and the peak of the dome allowing the driver to be crossed over at a much lower frequency. This results in improved dispersion and decreased distortion.


Specifications

Frequency Response: 28Hz-20kHz
Nominal Impedance: 6-ohm
Tweeter Size: 1"
Tweeter Material: Silk DPSD
Midrange Size: 4"
Midrange Material: Woven Glass Fiber
Woofer Size: 10"
Woofer Material: Glass Fiber
Mounting Depth: 6.22" (158mm)
Cutout Diameter: 10.375" (264mm)
Sensitivity: 93dB +/- 3dB
