Origin Acoustics D61DT In-Ceiling SingelStereo /st

In-Ceiling SingelStereo. Säljs per st.
Mer produktinformation
Garanti i 24 månader

Kontakta oss för frågor eller köp!

D61DT In-Ceiling SingelStereo. Säljs per st.

The Director 60 series is both powerful and discreet. Its two-way design in four performance levels offers a solution for systems that demand sonic purity in smaller spaces. Sharing technologies with its larger siblings, the 60 series will surprise listeners with its detail and impact.

Director Technology

The entire speaker pivots allowing the sound to be directed toward the listening area from anywhere in the room.

DPSD™ Tweeter

This patented tweeter has the greatest output and is able to crossover much lower to either the woofer or the midrange improving both dispersion and the frequency response.

Woofer Cone Materials

This patented tweeter has the greatest output and is able to crossover much lower to either the woofer or the midrange improving both dispersion and the frequency response.

Compression Molded Baskets

These complex baskets that support the woofer cones were computer designed and compression molded with absolute precision allowing for unique support and venting elements to assure peak performance.

TriLinear® Configuration (TLC)

The three-driver design is efficient and is more precise by dividing the frequency spectrum into smaller segments allowing the individual drivers to concentrate on a more limited sonic palette.

Tool-Less Mounting System

The Tool-Less Installation secures the speaker in the ceiling with the exact torque to ensure a tight fit. This is accomplished by squeezing the clips into place and locking the speaker with a twist.

X-Wave™ Woofer Surround

This suspension element absorbs unwanted frequencies that reflect up and down the woofer cone to reduce harmonic distortion while maintaining the desired linear travel of the woofer.

EQ Adjustment

These switches on the baffle allows the adjustment of the output of either the high frequencies or both high and low frequencies to custom tailor the sound based on the proximity ofthe architectural elements of the room.


Model: D61DT
Part Number: SCD2T60100
Woofer Cone: Poly/Rubber
Woofer Dimensions: 6.5" (165mm)
Tweeter Dome: Silk
Tweeter Diameter: 1" (25mm)
Frequency Response: 48 Hz - 20 kHz
Impedance: 6 ohm Minimum
Power Handling: 25 - 125 Watts

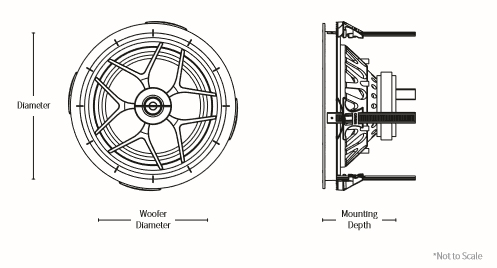

Diameter: 9.61" (244mm)
Grille Diameter: 10" (254mm)
Cutout Diameter: 8.75" (222mm)
Mounting Depth: 3.46” (88mm)

D61DT In-Ceiling SingelStereo /st
Jämför produkt
D61DT In-Ceiling Singel Stereo
Typ av produkt
In-ceiling högtalare
IP-klassificering Ingress Protection Rating. Anger klassificering avseende väder- och dammskydd. Första siffran: Fast partikelskydd. Andra siffran: Vätskeskydd. Några exempel: IPX4 = stänkvattenskyddad. IPX7 = vattentät. IP6X = Dammtätt. IP55 = Dammsäkert och spolsäkert.
Aktiv/passiv modell Beskriver om högtalaren är aktiv eller passiv. Passiva högtalare ansluts till en förstärkare via högtalarkabel. Aktiva högtalare har inbyggd förstärkare och behöver därför ingen extra förstärkning. De aktiva ansluts till ett vägguttag (portabla modeller är batteridrivna). Om aktiva högtalarna säljs i par, ansluts ibland endast ena högtalaren till elnätet, varvid andra högtalaren ansluts till den strömförsörjda huvudhögtalaren.

Origin Acoustics Director Collection
