Origin Acoustics D63DT/SUR In-Ceiling /st

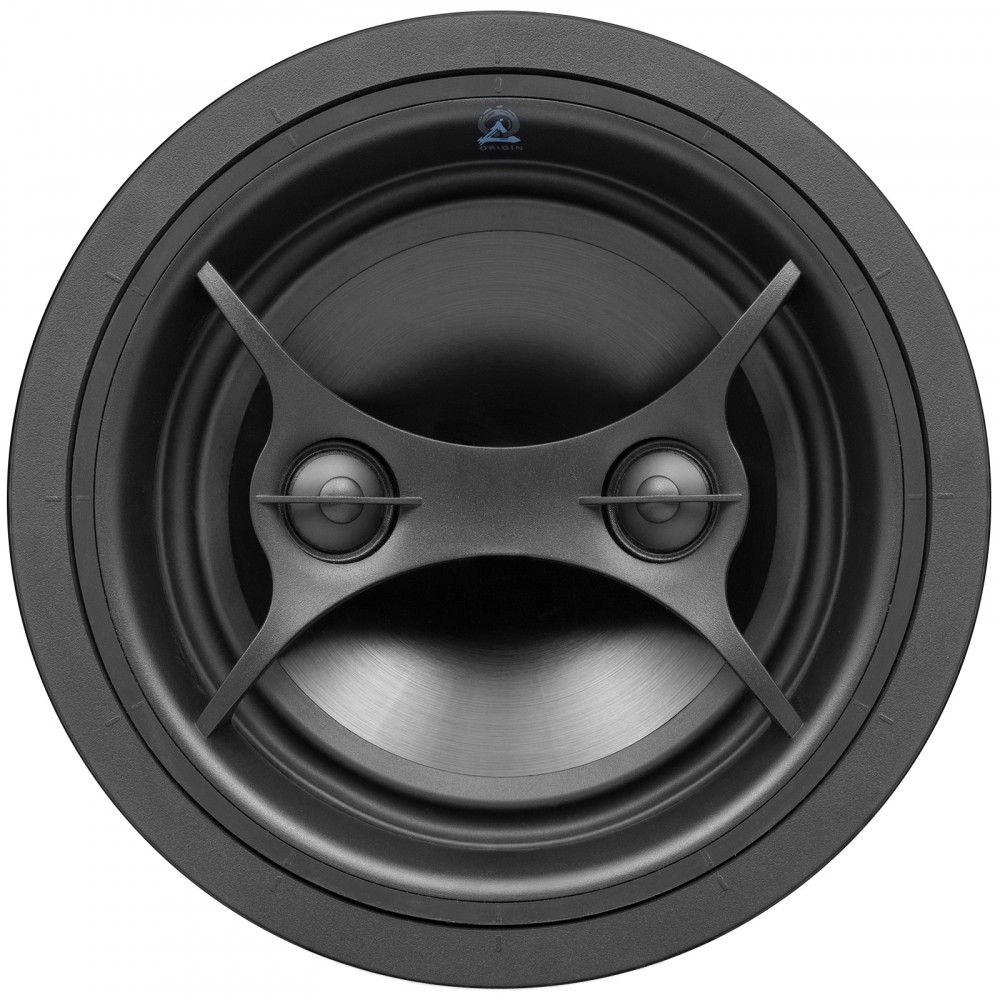

DIRECTOR D63DT/SUR IN-CEILING LOUDSPEAKER

Director 6″ Series – Stereo In-Ceiling Loudspeaker with a 6.5″ IMG Woofer, Dual Aluminum Tweeters and Tool-Less Installation.

– IMG WOOFER
– TOOL-LESS INSTALLATION
– IPX6 RATING

TOOL-LESS INSTALLATION

Interchangeable, secure, elegant. This is the way in-ceiling loudspeakers are meant to be installed. The Director Collection utilizes our tool-less mounting system to provide secure installation in any ceiling. The spring-loaded clips with multiple points of contact ensure the weight is distributed more evenly than traditional dog-legs which protects your ceiling and decreases unwanted vibration transfer.

COMPRESSION MOLDED WOOFER BASKETS

Using time tested and true technique of compression molding, we are able to design and produce woofer baskets that are both highly stable and acoustically neutral. The end result is a reduction in distortion without coloration from the basket itself.

MULTI-USE

The uses of the Director D83DT/SUR do not end with single-speaker stereo capability. With the flip of a switch, the loudspeaker can convert it to a dedicated surround speaker in a bipole configuration. This enhances dispersion, perfect for real channels in surround sound systems.

X-WAVE WOOFER SURROUND

When a speaker cone reaches its limit of movement and comes to a hard stop, unwanted waves ripple up and down the cone. This is much like a wave hitting the edge of a pool and reflecting back in the center of the water. Our X-Wave Woofer Surround progressively absorbs that impact, preventing unwanted sonic distortion and improving the overall fidelity of the loudspeaker.

MAGNETIC GRILLE

A paintable, perforated grille with a micro bezel covers the entire speaker assembly and leaves a discreet finished appearance. Its magnetic attachment makes removing or replacing the grille fast and easy.

WEATHER PROOF

With an IPX6 rating, the entire Director Collection is ready for installation into a wet environment. This rating ensures that your loudspeakers are safe from the corrosion and internal damage commonly posed by exposure to moisture. We believe in these so much, they’re back by a lifetime warranty.


Specifications

Sensitivity: 91dB +/- 3dB
Frequency Response: 48Hz-20kHz
Nominal Impedance: 6-ohm
Tweeter Size: Dual
Tweeter Material: Aluminum
Woofer Size: 6.5"
Woofer Material: IMG
Mounting Depth: 3.99" (101mm)
Cutout Diameter: 8.75" (222mm)
