Origin Acoustics D63 In-Ceiling /par

Mer produktinformation
Garanti i 24 månader

Kontakta oss för frågor eller köp!

D60 Series
Director Collection

The Director 60 series is both powerful and discreet. Its two-way design in four performance levels offers a solution for systems that demand sonic purity in smaller spaces. Sharing technologies with its larger siblings, the 60 series will surprise listeners with its detail and impact.

Director Technology

The entire speaker pivots allowing the sound to be directed toward the listening area from anywhere in the room.

DPSD™ Tweeter

This patented tweeter has the greatest output and is able to crossover much lower to either the woofer or the midrange improving both dispersion and the frequency response.

Woofer Cone Materials

This patented tweeter has the greatest output and is able to crossover much lower to either the woofer or the midrange improving both dispersion and the frequency response.

Compression Molded Baskets

These complex baskets that support the woofer cones were computer designed and compression molded with absolute precision allowing for unique support and venting elements to assure peak performance.

TriLinear® Configuration (TLC)

The three-driver design is efficient and is more precise by dividing the frequency spectrum into smaller segments allowing the individual drivers to concentrate on a more limited sonic palette.

Tool-Less Mounting System

The Tool-Less Installation secures the speaker in the ceiling with the exact torque to ensure a tight fit. This is accomplished by squeezing the clips into place and locking the speaker with a twist.

X-Wave™ Woofer Surround

This suspension element absorbs unwanted frequencies that reflect up and down the woofer cone to reduce harmonic distortion while maintaining the desired linear travel of the woofer.

EQ Adjustment

These switches on the baffle allows the adjustment of the output of either the high frequencies or both high and low frequencies to custom tailor the sound based on the proximity ofthe architectural elements of the room.


Specifications D63

Part Number: SCD60300
Woofer Cone: IMG
Woofer Dimensions: 6.5" (165mm)
Tweeter Dome: Aluminum
Tweeter Diameter: 1" (25mm)
Frequency Response: 48 Hz - 20 kHz
Impedance: 6 ohm Minimum
Power Handling: 25 - 125 Watts

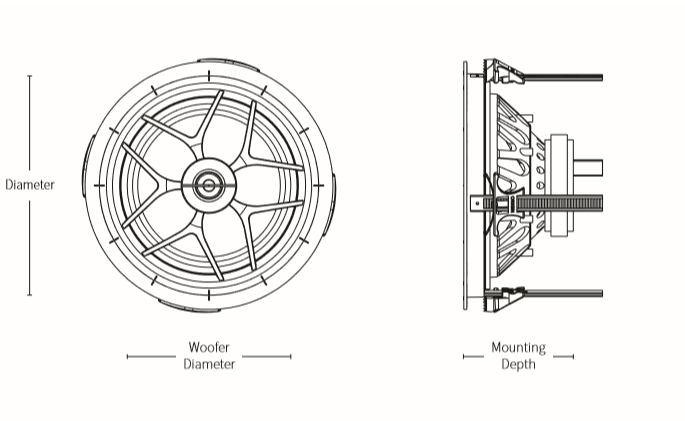

Diameter: 9.61" (244mm)
Grille Diameter: 10" (254mm)
Cutout Diameter: 8.75" (222mm)
Mounting Depth: 3.72” (94mm)

Modell
D63 In-Ceiling /par
Artikelnummer
1001_018-00102
Varumärke
Jämför produkt
Modellbeskrivning
Modell
D63 In-Ceiling
Typ av produkt
In-ceiling högtalare
IP-klassificering Ingress Protection Rating. Anger klassificering avseende väder- och dammskydd. Första siffran: Fast partikelskydd. Andra siffran: Vätskeskydd. Några exempel: IPX4 = stänkvattenskyddad. IPX7 = vattentät. IP6X = Dammtätt. IP55 = Dammsäkert och spolsäkert.
IPX6
Aktiv/passiv modell Beskriver om högtalaren är aktiv eller passiv. Passiva högtalare ansluts till en förstärkare via högtalarkabel. Aktiva högtalare har inbyggd förstärkare och behöver därför ingen extra förstärkning. De aktiva ansluts till ett vägguttag (portabla modeller är batteridrivna). Om aktiva högtalarna säljs i par, ansluts ibland endast ena högtalaren till elnätet, varvid andra högtalaren ansluts till den strömförsörjda huvudhögtalaren.
Passiv
Allvädershögtalare
Ja

Origin Acoustics Director Collection
